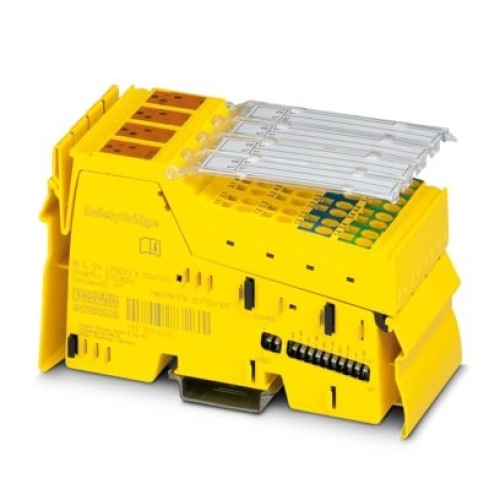

IB IL 24 LPSDO 8 V3-PAC Phoenix Contact 2701625 IO components, safety related Digital Output
IB IL 24 LPSDO 8 V3-PAC Phoenix 2701625 IO components, safety related Digital Output Inline local bus 500 kbps / 2 Mbps Inline data jumper,Spring-cage connection PLC & IO
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $1320.87
Sale Price:
$903.08
Safety-related digital output module, IP20 protection, for the SafetyBridge system. The module has four safe digital outputs with two-channel occupancy or 8 safe digital outputs with single-channel occupancy
| Specifications | |
| Non-matching | Non-matching |
| PLC & IO Network Interface | Inline local bus |
| PLC & IO Degree of Protection | IP20 |
| PLC & IO Connection Method | Inline data jumper |
| PLC & IO Connection Method | Spring-cage connection |
| PLC & IO Transmission Speed | 500 kbps - 2 Mbps |
| PLC & IO Number of Digital Outputs | 4 |
| PLC & IO Application | SafetyBridge |
| Manufacturer | Phoenix Contact |
| Component | I/O Component |
- Processing of the parameterized safety logic
- SIL 3 according to IEC/EN 61508
- PL e in accordance with EN ISO 13849-1
- SIL 3 in accordance with EN IEC 62061
- Generation and monitoring of the SafetyBridge protocol
