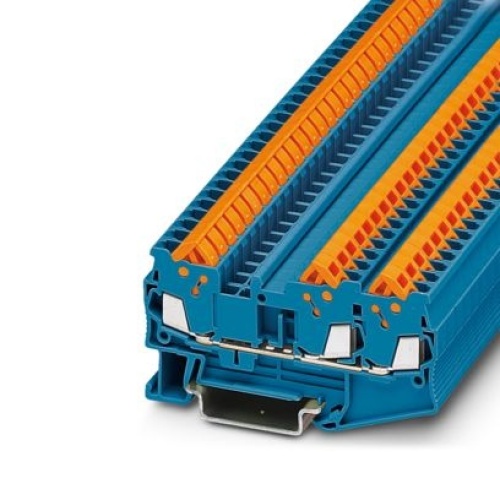

QTC 1,5-TWIN BU Phoenix Contact 3205051 blue Multi-conductor Terminal Block
QTC 1,5-TWIN BU Phoenix 3205051 Multi-conductor terminal block Quick connection 800 V 17.5 Amp blue Terminal Blocks
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (MUST BUY IN PACKS OF 50)
Price: $4.72
Sale Price:
$2.94
Feed-through terminal block, nom. voltage: 800 V, nominal current: 17.5 A, connection method: Quick connection, number of connections: 3, cross section: 0.25 mm² - 1.5 mm², AWG: 24 - 16, width: 5.2 mm, color: blue, mounting type: NS 35/7,5, NS 35/7,5
| Specifications | |
| Terminal Block Indication | No Indicator |
| Terminal Block Voltage Rating | 800 Volt |
| Terminal Block Fused | Not Fused |
| Terminal Block Width | 5.2 mm |
| Terminal Block Number of Levels | 1 |
| Terminal Block Number of Connections | 3 |
| Terminal Block Component Color | Blue |
| Terminal Block Grounded | Not Grounded |
| Terminal Block Min Wire Size | 24 |
| Terminal Block Connection Method | Quick Connection |
| Terminal Block Max Wire Size | 16 |
| Terminal Block Amperage | 17.5 Amp |
| Component | Terminal block |
| Manufacturer | Phoenix Contact |
| Sub Component | Feed-through terminal block |
| Sub Component | Multi-conductor terminal block |
