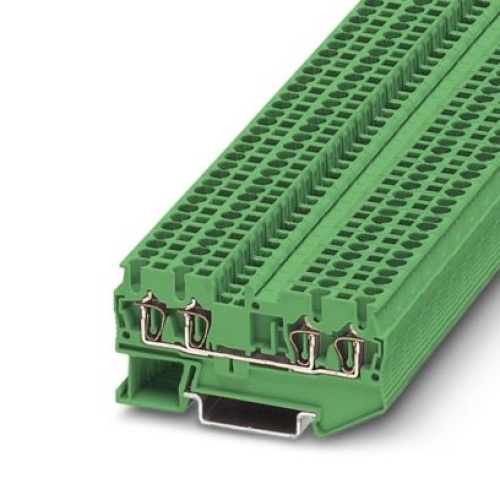

ST 2,5-QUATTRO GN Phoenix Contact 3037465 green Multi-conductor Terminal Block
ST 2,5-QUATTRO GN Phoenix 3037465 Multi-conductor terminal block Spring-cage connection 800 V 24 Amp green Terminal Blocks
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (MUST BUY IN PACKS OF 50)
Price: $5.31
Sale Price:
$3.25
Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, connection method: Spring-cage connection, number of connections: 4, cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, width: 5.2 mm, color: green, mounting type: NS 35/7,5, NS 35/15
| Specifications | |
| Terminal Block Indication | No Indicator |
| Terminal Block Voltage Rating | 800 Volt |
| Terminal Block Fused | Not Fused |
| Terminal Block Width | 5.2 mm |
| Terminal Block Number of Levels | 1 |
| Terminal Block Number of Connections | 4 |
| Terminal Block Grounded | Not Grounded |
| Terminal Block Max Wire Size | 12 |
| Terminal Block Connection Method | Spring-cage Connection |
| Terminal Block Min Wire Size | 28 |
| Terminal Block Component Color | Green |
| Terminal Block Amperage | 24 Amp |
| Component | Terminal block |
| Manufacturer | Phoenix Contact |
| Sub Component | Feed-through terminal block |
| Sub Component | Multi-conductor terminal block |
