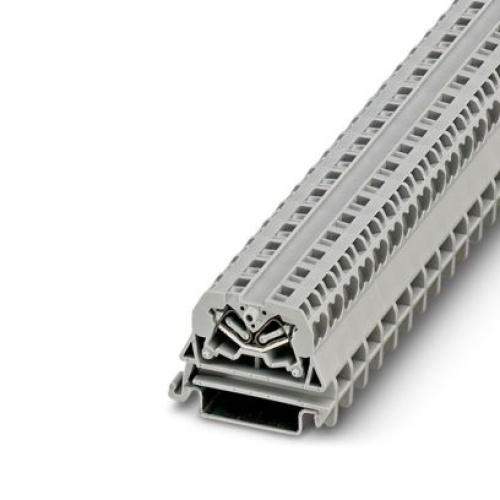

MSDBV 2,5-NS 35 Phoenix Contact 3249211 gray Miniature Terminal Block
MSDBV 2,5-NS 35 Phoenix 3249211 Miniature terminal block Spring-cage connection 800 V 24 Amp gray Terminal Blocks
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (MUST BUY IN PACKS OF 50)
Price: $3.21
Sale Price:
$1.96
Mini feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, connection method: Spring-cage connection, number of connections: 4, cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, width: 10.4 mm, height: 22 mm, color: gray, mounting type: NS 35/7,5, NS 35/15
| Specifications | |
| Terminal Block Indication | No Indicator |
| Terminal Block Voltage Rating | 800 Volt |
| Terminal Block Fused | Not Fused |
| Terminal Block Width | 10.4 mm |
| Terminal Block Number of Levels | 1 |
| Terminal Block Number of Connections | 4 |
| Terminal Block Component Color | Gray |
| Terminal Block Grounded | Not Grounded |
| Terminal Block Max Wire Size | 12 |
| Terminal Block Connection Method | Spring-cage Connection |
| Terminal Block Min Wire Size | 28 |
| Terminal Block Amperage | 24 Amp |
| Component | Terminal block |
| Manufacturer | Phoenix Contact |
| Sub Component | Miniature terminal block |
| Sub Component | Mini Feed-Through Terminal Block |
