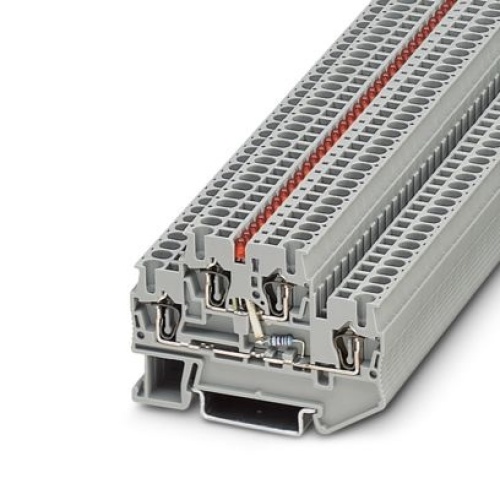

STTB 2,5-LA230 Phoenix Contact 3031623 gray Component Terminal Block
STTB 2,5-LA230 Phoenix 3031623 Component terminal block Spring-cage connection 250 V 22 Amp gray Terminal Blocks
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (MUST BUY IN PACKS OF 50)
Price: $26.50
Sale Price:
$16.24
Component terminal block, nom. voltage: 250 V, nominal current: 22 A, connection method: Spring-cage connection, cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, length: 67.5 mm, width: 5.2 mm, color: gray, mounting: NS 35/7,5, NS 35/15
| Specifications | |
| Terminal Block Voltage Rating | 250 Volt |
| Terminal Block Fused | Not Fused |
| Terminal Block Width | 5.2 mm |
| Terminal Block Number of Connections | 4 |
| Terminal Block Number of Levels | 2 |
| Terminal Block Component Color | Gray |
| Terminal Block Grounded | Not Grounded |
| Terminal Block Max Wire Size | 12 |
| Terminal Block Connection Method | Spring-cage Connection |
| Terminal Block Min Wire Size | 28 |
| Component | Terminal block |
| Manufacturer | Phoenix Contact |
| Terminal Block Amperage | 22 Amp |
| Sub Component | Component terminal block |
