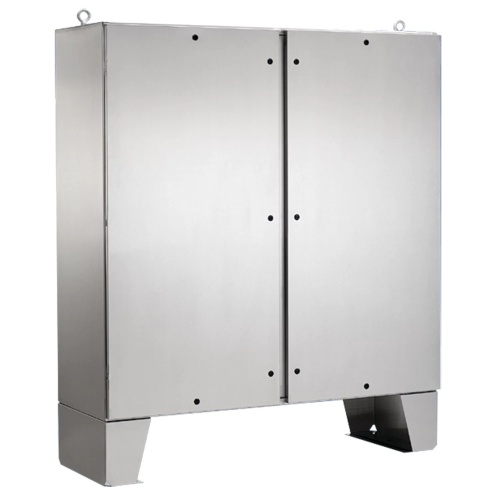

nVent Hoffman A72H6012SSLPQT Stainless Steel Enclosure
Normally In Stock
Code: 4891
nVent Hoffman A72H6012SSLPQT Enclosure Stainless Steel 72.06 x 60.06 x 12.06 inch (HxWxD) Type 4x 304 Stainless Free-Stand(Floor Stands)(Floor Stands) Two Door with Concealed hinges provide 180-degree door opening and quarter-turn latches with slotted insert provided on three sides of each door. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$20460.64
Sale Price
$17050.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A72H6012SSLPQT Stainless Steel Enclosure This two-door stainless steel enclosure with quarter-turn latches is designed to house electronic controls and components. It provides protection from noncorrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the food and beverage, packaging, water, petroleum and chemical processing industries.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Interior Color
White
Enclosure Depth
12"
Enclosure Composition
304 Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
60"
Enclosure Height
72"
Enclosure Mount Type
Floor Mount
Enclosure Door Type
Solid
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Black die-cast quarter-turn latches with slotted insert provided on three sides of each door
Flange trough collar on all four sides of door openings
Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
Concealed hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
Seams continuously welded and ground smooth
Floor-standing enclosure with 1/4 turn latching
Bolt-on 12-in.-high stainless steel floor stands
Bonding provisions on doors, grounding studs on body
Removable centerpost for easy panel installation
Collar studs on inside of enclosure back for mounting optional panels
Heavy-duty Type 316L stainless steel lifting eyes
Data pocket is high-impact plastic attached with pressure-sensitive adhesive
No interior stiffeners to obstruct component mounting
Accessory mounting channel provided in enclosure top
Downloads
Hoffman A72H6012SSLPQT 2D DXF CAD.zipHoffman A72H6012SSLPQT 3D STEP CAD.zipHoffman A72H6012SSLPQT CAD Drawing.zipHoffman A72H6012SSLPQT Declaration of Compliance.pdfHoffman A72H6012SSLPQT Enclosure Alterations Manual.pdfHoffman A72H6012SSLPQT EU Certification.pdfHoffman A72H6012SSLPQT Instruction Manual.pdfHoffman A72H6012SSLPQT Large Enclosure Handling Instructions.pdfHoffman A72H6012SSLPQT Large Enclosure Handling Manual.pdfHoffman A72H6012SSLPQT Spec Sheet.pdfHoffman A72H6012SSLPQT UL Certification.pdfHoffman A72H6012SSLPQT User Manual.pdf
