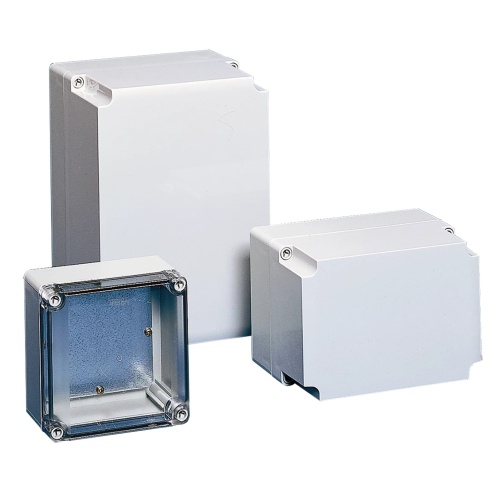

Images are for illustration only and may not reflect the actual product. Refer to
the
description or specs.
Hoffman Q181813ABECC QLINE E Non-Metallic Clear ABS Enclosure
Hoffman Q181813ABECC Enclosure 6.65 x 6.65 x 4.61 inch (HxWxD) ABS QLINE E Type 4x Clear Enclosure with Screw Cover. (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $101.40
Sale Price:
$73.87
Hoffman Q181813ABECC Enclosure 6.65 x 6.65 x 4.61 inch (HxWxD) ABS QLINE E Type 4x Clear Enclosure with Screw Cover.
| Specifications | |
| Component | Non-Metallic Enclosure |
| Enclosure Environment Rating | Outdoor-Indoor |
| Enclosure Hinge Type | Standard Hinge |
| Enclosure Lock Type | Padlocking |
| Enclosure Depth | 5" |
| Enclosure Interior Color | Gray |
| Enclosure Composition | ABS |
| Enclosure NEMA Rating | NEMA Type 4 |
| Enclosure NEMA Rating | NEMA Type 4X |
| Enclosure Width | 7" |
| Enclosure Height | 7" |
| Line | Qline |
| Manufacturer | Hoffman |
| Enclosure Door Type | Solid |
| Enclosure Mount Type | Wall Mount |
| Enclosure Latch Type | Screw |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 12 |
| Enclosure NEMA Rating | NEMA Type 13 |
| Enclosure NEMA Rating | NEMA Type 6 |
- Cover includes a molded-in wire lead hole
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Cross-point flush cover screws are strong, durable polyamide
- Mounting tracks along body side walls for PC card installation
- Opaque and clear covers are impact-resistant polycarbonate for PCE, opaque covers are ABS for ABE series
- Body is impact-resistant polycarbonate for PCE series and ABS for ABE series
- Molded internal pads for mounting optional panels, rails and other components
- Material is halogen free
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
Customer Reviews
0.0
All Reviews
Hoffman Q181813ABECC 2D DXF CAD.zip
Hoffman Q181813ABECC 3D STEP CAD.zip
Hoffman Q181813ABECC CAD Drawing.zip
Hoffman Q181813ABECC CSA Certification.pdf
Hoffman Q181813ABECC Declaration of Compliance.pdf
Hoffman Q181813ABECC EU Certification.pdf
Hoffman Q181813ABECC Spec Sheet.pdf
Hoffman Q181813ABECC UL Certification.pdf
