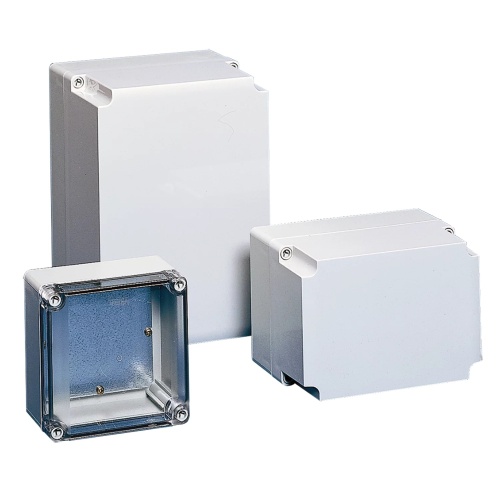

Hoffman Q181310ABECC QLINE E Non-Metallic Clear ABS Enclosure
Hoffman Q181310ABECC Enclosure 6.65 x 4.69 x 3.62 inch (HxWxD) ABS QLINE E Type 4x Clear Enclosure with Screw Cover. (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $63.83
Sale Price:
$47.83
Hoffman Q181310ABECC Enclosure 6.65 x 4.69 x 3.62 inch (HxWxD) ABS QLINE E Type 4x Clear Enclosure with Screw Cover.
| Specifications | |
| Component | Non-Metallic Enclosure |
| Enclosure Depth | 4" |
| Enclosure Environment Rating | Outdoor-Indoor |
| Enclosure Hinge Type | Standard Hinge |
| Enclosure Lock Type | Padlocking |
| Enclosure Interior Color | Gray |
| Enclosure Composition | ABS |
| Enclosure NEMA Rating | NEMA Type 4 |
| Enclosure NEMA Rating | NEMA Type 4X |
| Enclosure Height | 5" |
| Enclosure Width | 7" |
| Line | Qline |
| Manufacturer | Hoffman |
| Enclosure Door Type | Solid |
| Enclosure Mount Type | Wall Mount |
| Enclosure Latch Type | Screw |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 12 |
| Enclosure NEMA Rating | NEMA Type 13 |
| Enclosure NEMA Rating | NEMA Type 6 |
- Cover includes a molded-in wire lead hole
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Cross-point flush cover screws are strong, durable polyamide
- Mounting tracks along body side walls for PC card installation
- Opaque and clear covers are impact-resistant polycarbonate for PCE, opaque covers are ABS for ABE series
- Body is impact-resistant polycarbonate for PCE series and ABS for ABE series
- Molded internal pads for mounting optional panels, rails and other components
- Material is halogen free
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
