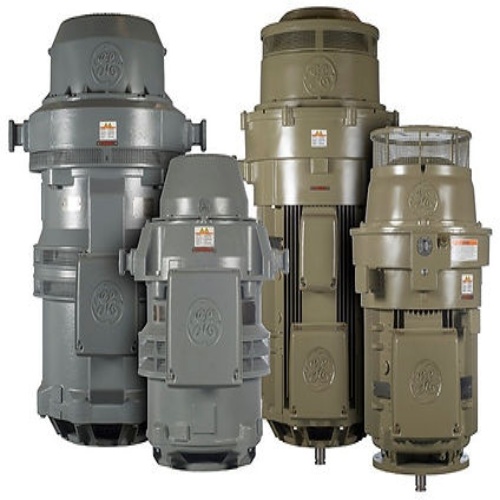

GE 5KS365XAA2034 Vertical C-Face TEFC, 75 HP, 1800 RPM

GE 5KE284DAE6020 - GE's XSD Ultra® 841 Vertical C-Face Normal Thrust Motors are designed for extra severe-duty applications with NEMA frame sizes ranging from 143 to 365 and 2, 4, or 6 poles. These motors have UL and CSA approvals, including recognition for components and insulation systems. They comply with industry specifications like IEEE 841 and IEEE 45 Marine Duty. The warranty lasts for 60 months from installation or 66 months from manufacture, with a maximum ambient temperature of 40°C and altitude of 3300 feet. They feature insulation class H, inverter capability for variable torque, and NEMA Premium efficiency for motors in the 1-300 HP range. The frame material is cast iron, and they have features like Neoprene rubber gaskets, cast iron fan covers, and stainless steel nameplates. These motors have reliable bearing protection, fasteners, and vibration pads for precise measurements.

Specifications
Motor Frame Model	365TC
Motor Horsepower	75 HP
Motor Frequency	60 Hz
Motor NEMA Design	NEMA Design B
Motor Voltage	460 Volt
Motor RPM's	1800 RPM
Motor Enclosure Type	TEFC
Motor Insulation Class	Class H Insulation
Motor Construction	Cast Iron
Manufacturer	GE
Efficiency	95%
Down Thrust (lbs)	1604
