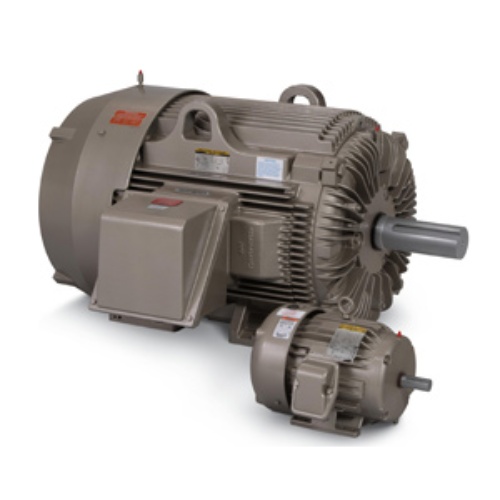

Baldor ECR584504-PPN - TEFC, 3 Phase, 450 HP
Normally In Stock
Code: 315233
Baldor ECR584504-PPN - Totally Enclosed Fan Cooled - 1800 RPM - 460 Volt - 519 Amp - 450 HP - 586/7TZ Frame
Condition: New
CALL FOR LEAD TIME$53682.83
Sale Price
$44735.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor ECR584504-PPN - Baldor-Reliance® severe duty motors are specifically engineered to withstand harsh conditions, safeguarding against contamination, moisture, vibration, and corrosion. These motors are equipped with Super-E® premium efficient electrical designs, ensuring they can handle demanding duty cycles while delivering high starting and peak torques across wide speed ranges. With heavy-duty cast iron construction and enhanced ingress protection, these motors provide a safe, reliable, and long operating life, effectively reducing energy consumption even in the most challenging applications. Additionally, their corrosion-resistant epoxy finish adds further durability to the motors, making them an ideal choice for tough environments.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Horsepower
450 HP
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Amperage (Full Load)
519 Amp
Manufacturer
Baldor-Reliance
Motor Frame Model
586/7TZ
Features
Fit-for-purpose motor that is designed for the application with high start-up and breakdown torque that is intended for crushing applications
Design A allows for high starting torques required by many of the demanding applications in the aggregate industry.
A service factor of 1.25 thru 100 hp and 1.15 for more than 100 hp allows for operation during peak loading conditions.
Heavy duty cast iron frames construction (frame, endplates, conduit box and fan cover) for durability
Suitable for inverter use per NEMA MG1 Part 31.4.4.2
Oversized ball bearings up to 50 hp, ball and roller bearing design 60 hp and up.
