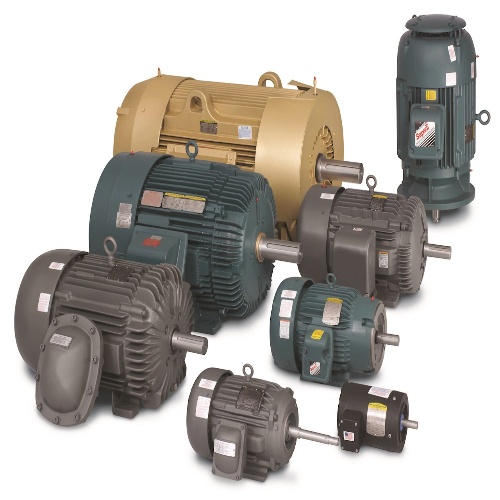

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

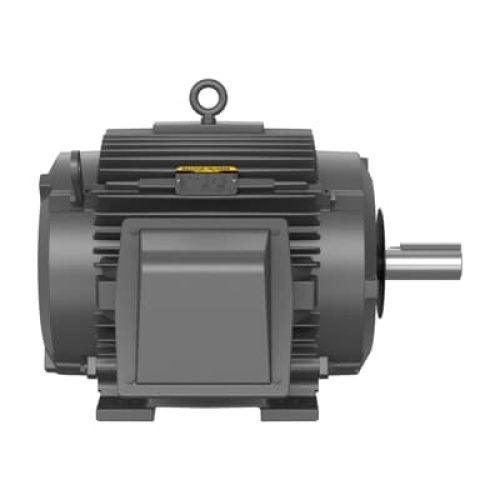

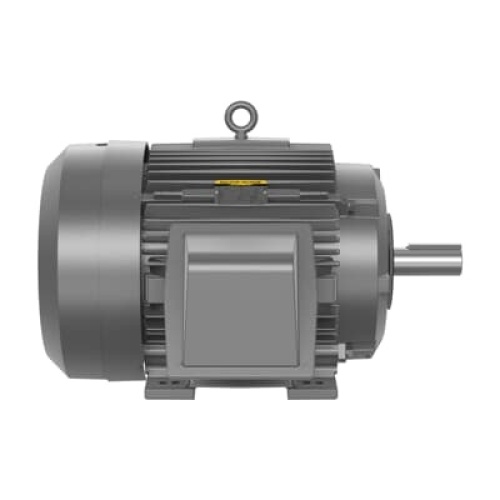

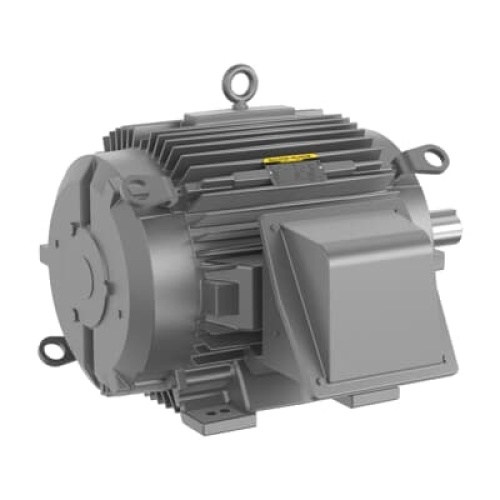

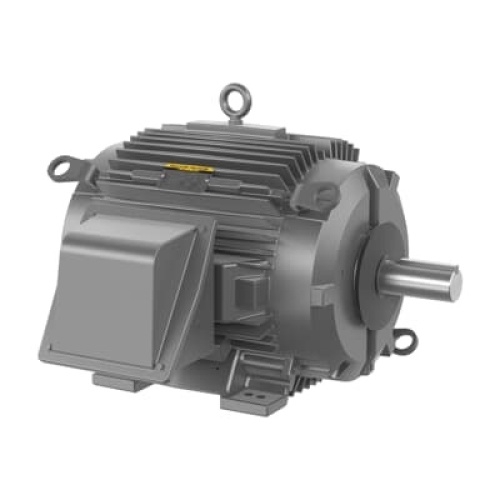

Baldor ECTM4314T-G-AO - TEAO, 3 Phase, 60 HP , 60 Hz
Normally In Stock
Code: 314024
Baldor ECTM4314T- G- AO - Totally Enclosed Air Over - Cooling Tower Motor - 1800 RPM - 460 Volt - 70 Amp - 60 HP - Iron - 364T Frame - Class F Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME$15280.75
Sale Price
$12733.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor ECTM4314T-G-AO - Baldor-Reliance® HVAC motors are meticulously designed to cater to the specific needs of air handling systems, ensuring smooth, quiet, and efficient operation. These motors lead to improved system reliability and performance, while also requiring less maintenance. Key features include a dynamically balanced rotor that reduces noise and extends bearing life, color-coded and numbered leads for effortless connectivity during installation, and a bar code spec number for easy identification. The motors are equipped with low noise vibration dampening bases, further enhancing their quiet operation. Additionally, Baldor-Reliance® motors meet or exceed all efficiency requirements mandated by the regulations in the US, Canada, and Mexico, making them an optimal choice for energy-efficient HVAC applications.
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Frame Model
364T
Motor Horsepower
60 HP
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Amperage (Full Load)
70 Amp
Motor Enclosure Type
Totally Enclosed Air Over
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Motor Type
Cooling Tower
Features
Severe-duty construction with a rugged cast iron frame and corrosion-resistant hardware and coatings, built to withstand the toughest environments.
Four-barrier shaft sealing (lip contact seal, V-ring slinger, dome slinger, double-sealed bearings) on the drive end combined with a lipped conduit lid and lead separator gasket delivers enhanced protection with an IP55 rating.
Suitable for Inverter Duty per NEMA MG1 Part 31.4.4.2
*Internally mounted shaft grounding ring installed on all -G suffix
Heating strips warm the motor windings to prevent moisture buildup and condensation, protecting against corrosion and performance loss.
Equipped with a tapped drive end shaft and endplate for secure vertical lifting, plus an easily installed eyebolt for versatile lifting options.
