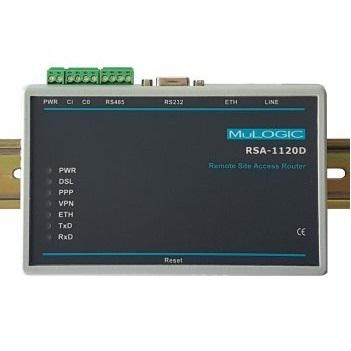

Mulogic RSA-1120D/Vr3 Industrial ADSL Router 24-64VDC

Mulogic RSA-1120D/Vr3 Industrial Remote Site Access ADSL Router 24-64VDC. For access to remote locations such as water and power substations or traffic management systems and various other remote sites with automation equipment. Extended temperature range suitable for operating at ambient temperatures ranging from -40°F to +158°F. Two serial port gateways for remote serial data (TCP/IP or UDP/IP) to serial ports (one RS232, one RS485) with data rates from 300bits to 115.2 kbps. Ethernet port support SCADA protocols like Modbus/TCP, DNP3/IP and IEC60870-5-104 are 10/100baseT, Auto-MDI/MDIX. All can be used as LAN or WAN port.

Specifications
(Modem/Router) Case Type	Plastic
(Modem/Router) Data Type	Ethernet
(Modem/Router) Ethernet Ports	1 Ethernet Port
(Modem/Router) USB Ports	No USB 2.0 Ports
(Modem/Router) Mounting	Din Rail
(Modem/Router) High Temperature Range	158 F
(Modem/Router) Data Type	Serial
(Modem/Router) Low Temperature Range	-40 F
(Modem/Router) Serial Ports	2 Serial Ports
(Modem/Router) Communication Medium	DSL Line (ADSL)
(Modem/Router) Data Rate Serial	115.2 kbps
(Modem/Router) Downstream Rate	24 Mbps
(Modem/Router) Type	ADSL Router
(Modem/Router) Upstream Rate	3 Mbps
(Modem/Router) Replaces	Leased Line Modems
(Modem/Router) Replaces	Dial Up Modems
Component	ADSL Modem
(Modem/Router) Voltage Rating	24 Volt
Manufacturer	Mulogic
(Modem/Router) Voltage Rating	48 Volt
