MDS Orbit ECR Cellular 3G GSM World-WiFi 1 Ethernet 1 Serial 1 USB (Standard Mount)
MDS ECR4GYNW51NS1D3USUNNN Orbit Cellular 3G GSM World with stadard mount (WiFi) Managed Connected Router ECR Series. 902-928 MHz Radio with 1 Ethernet Port and 1 Serial and 1 USB Port. Up to 30 mile range.
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
This product is now obsolete from the manufacturer
Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.

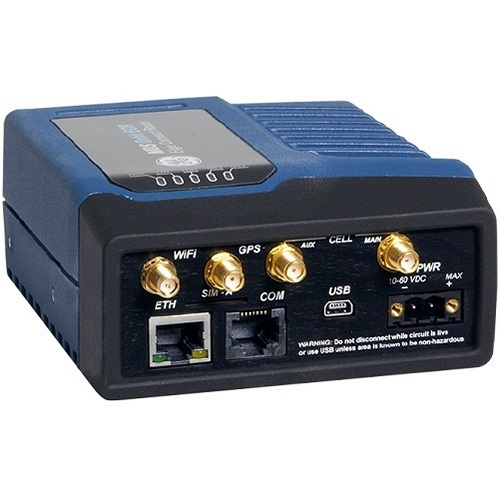

MDS Orbit ECR Cellular 3G GSM World with standarad mount and WiFi. ECR3G11W51NS1S3USUNNN Managed Connected Router MCR Series. Includes 2 Ethernet and 1 Serial port. Operating power of 10-60 VDC up to 1 watt. USB for configuration, status monitoring, local and secure single point connection. Range of up to 30 miles line of site. Low latency and scalable data throughput rates of 125 Kbps, 250 Kbps, 500 Kbps, 1 Mbps, and 1.25 Mbps. Access Point, remote, store and forward, point to multipoint and point to point. Works as Serial Terminal Server with protocols including Modbus and DNPv3 supported and serial traffic from SCADA and telemetry data encapsulated in TCP and UDP to transport across MDS Orbit wireless or wired networks. The MDS Orbit devices are capable of routing across any of its network interfaces including the local Ethernet ports, WiFi, WiMAX, cellular, and 900MHz ISM. Operating temperature of -40F-158F. (2.1"H x 4.3"W x 4.6"D) Antenna ports for 900 MHz: TNC, WiFi: RP-SMA, Cellular SMA. Ethernet ports: RJ-45, Serial ports: RS-232/RS-485 and RJ45.
| Specifications | |
| Radio Type | Cellular |
| Radio 2 Type | WiFi |
| Radio Capability | Point to Multipoint |
| Radio Voltage | 12 VDC |
| Radio Voltage | 24 VDC |
| Radio Carrier Power | 1 watt |
| Radio Data Protocol | Serial |
| Radio Temperature Range Low | -40f |
| Radio Temperature Range High | 158f |
| Radio Encryption | AES-128 |
| Radio Housing | Enclosed |
| Radio UL Approval | UL Approved |
| Radio Data Protocol | Ethernet |
| Radio Range | Unlimited |
| Radio Voltage | 48 VDC |
| Radio Serial Ports | 1 Serial Port |
| Radio RF Connector | TNC Female |
| Radio Ethernet Ports | 1 Ethernet Port |
| Radio Data Interface | RJ45 |
| Radio Mounting | Standard Mount |
| Radio Data Rate | 1.25 Mbps |
| 2nd Radio Frequency Range | WiFi |
| Radio WiFi | Includes WiFi |
| Radio Frequency Range | Cellular |
| Radio Antenna Ports | 1 Antenna Port |
| Manufacturer | MDS |
| Line | Orbit ECR |
| Component | Radio |
