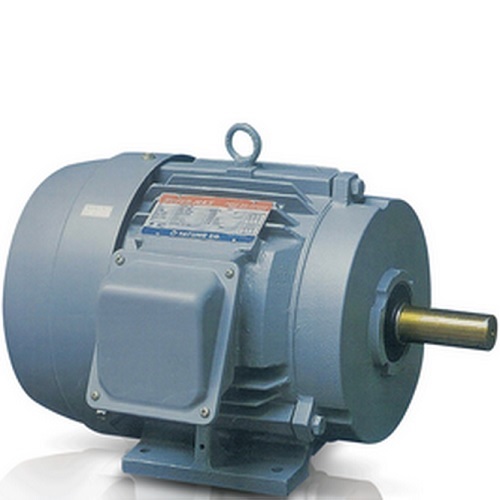

Tatung WH7Y58FFAC Electric Motor 7.5 HP 230V 3 Phase

Tatung WH7Y58FFAC Super-Max 7.5 HP Electric Motor. 3 Phase 230/460 Volt, 60 Hz, Cast Iron Frame Totally Enclosed Fan Cooled, 900 RPM, Inverter Duty, Continuous Duty, 22.6 amps(230VF/L Amps) Class F Insulation, Nema Design B. Tatung Frame 256T.

Specifications
Motor Enclosure Type	Totally Enclosed Fan Cooled
Motor Voltage Phases	3 Phase
Motor Insulation Class	Class F Insulation
Motor Horsepower	7.5 HP
Motor Frequency	60 Hz
Motor Duty Cycle	Continuous Duty
Motor NEMA Design	NEMA Design B
Motor Voltage	230 Volt
Motor Voltage	460 Volt
Motor RPM's	900 RPM
Manufacturer	Tatung Motors
Motor Frame Construction	Cast Iron
Motor Amperage (Full Load)	22.6 Amp
