Yagi Uda Antennas

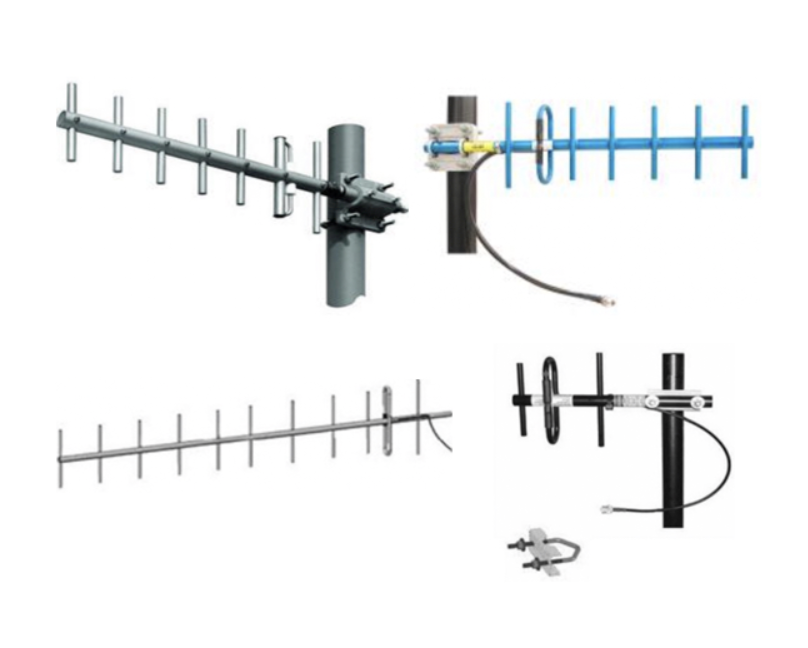

Yagi-Uda antennas are a type of directional antenna commonly used for high-frequency communication applications, such as in television and radio broadcasting.
The Yagi-Uda antenna consists of a driven element, a reflector, and one or more directors. The driven element is usually a simple dipole antenna, while the reflector and directors are passive elements that work together to direct the radio waves in a particular direction.
The reflector is placed behind the driven element, and its purpose is to reflect the radio waves back towards the driven element, increasing the antenna's gain in the forward direction. The directors are placed in front of the driven element, and their purpose is to focus the radio waves in the forward direction, increasing the antenna's directivity.
The Yagi-Uda antenna is characterized by its high gain and narrow beam width, which makes it ideal for applications where a strong and directional signal is required. It is commonly used for long-distance communication, such as in point-to-point links between radio towers or in satellite communication systems.
Products
More Information about Yagi-Uda Antennas
How to select a Yagi-Uda antenna
Choosing the right Yagi antenna depends on several factors, including the frequency range of the signal you want to receive or transmit, the desired forward gain, and the directionality of the antenna.
Here are some steps to help you choose the right Yagi-Uda antenna:
- Determine the frequency range: Choose an antenna that is designed to operate in the frequency range of the signal you want to receive or transmit. Yagi antennas are typically designed for a specific frequency range, so it's important to choose an antenna that matches the frequency of the signal.
- Determine the gain: The gain of an antenna is a measure of how much it amplifies the signal. Yagi antennas are known for their high gain, but the amount of gain varies depending on the design and number of elements. Choose an antenna with a gain that matches your needs, taking into account factors such as the distance to the transmitter or receiver and the strength of the signal.
- Determine the directionality: Yagi antennas are directional, meaning they are designed to receive or transmit signals in a specific direction. Choose an antenna with the appropriate beamwidth and directionality for your needs. For example, if you need to receive signals from multiple directions, you may want to choose a multi-directional or omnidirectional antenna instead of a directional Yagi antenna.
- Consider the size and mounting options: Yagi antennas come in different sizes and mounting options. Choose an antenna that is appropriate for the space you have available and the mounting options you need.
- Check the specifications: Finally, make sure to review the specifications of the antenna you are considering to ensure that it meets your needs in terms of frequency range, gain, directionality, and other important factors.
Overall, choosing the right Yagi antenna requires careful consideration of several factors, and it's important to choose an antenna that matches your specific needs and requirements.
FAQs
What is a Yagi antenna used for?
A Yagi-Uda antenna is a type of directional antenna that is commonly used for high-frequency communication applications, such as in television and radio broadcasting, point-to-point links between radio towers, and satellite communication systems.
What is better than a Yagi antenna?
There is no one-size-fits-all answer to what is better than a Yagi-Uda antenna, as the choice of antenna depends on the specific application and the desired performance characteristics. Ultimately, the choice of antenna will depend on a variety of factors, including the frequency range, the distance of communication, the required gain and directivity, and the environment in which the antenna will be used.
Which is better Yagi or omni antenna?
Yagi-Uda antennas are better suited for applications where a strong and directional signal is required, while omni antennas are better suited for applications where 360-degree coverage is necessary. It is important to carefully consider the specific requirements of a given application and choose the antenna that best meets those requirements.
Do Yagi antennas need line of sight?
Yagi antennas do not necessarily require a clear line of sight, but their performance can be affected by obstructions between the transmitting and receiving antennas. Since Yagi antennas are directional, they are designed to transmit and receive signals in a specific direction. If there are obstructions such as trees, buildings, or hills in the path of the signal, the signal may be weakened or blocked, resulting in a reduced range and signal quality.
What is the transmission line of a Yagi-Uda antenna?
The transmission line of a Yagi-Uda antenna is the electrical connection between the transmitter or receiver and the antenna itself. It is an essential component of any antenna system, as it provides a low-loss, high-impedance pathway for the radio-frequency (RF) signals to travel between the transmitter or receiver and the antenna. The transmission line of an antenna can take various forms, such as coaxial cable, waveguide, or open-wire line, depending on the specific application and the frequency range of the signal.
What is Antenna Theory?
Antenna theory is used to optimize the performance of antennas for a particular application, taking into account factors such as frequency, bandwidth, radiation pattern, gain, efficiency, and impedance matching. The theory also considers the effects of the surrounding environment, such as the presence of obstacles or multipath interference, which can affect the performance of the antenna.
What are Parasitic Elements?
Parasitic elements are passive elements that are added to some types of antennas to improve their performance. The most common type of parasitic element used in Yagi antennas is the director, which is positioned in front of the driven element. Another type of parasitic element used in Yagi antennas is the reflector element, which is positioned behind the driven element.
The Yagi-Uda Antenna
The Yagi-Uda antenna is a directional antenna that can transmit and receive data coming from a specific direction (the direction the antenna is facing). Thus, directional antennas must be aimed in the direction of the potential signal transmitter. Aiming the antenna correctly is essential for optimal reception. Knowing the width of the antenna's signal pattern is the best way to ensure optimal aim.
Advantages of Yagi-Uda antennas:
Directionality: They are highly directional and can be used to transmit or receive signals in a specific direction. This makes them ideal for long-distance communications, as they can concentrate power in a specific direction.
High gain: They have a high gain, which means that they can amplify signals and improve reception quality.
Low noise: They have a low noise level, which means that they can filter out interference and improve signal quality.
Cost-effective: They are relatively inexpensive and easy to construct, making them an affordable option for many applications.
Disadvantages of Yagi-Uda antennas:
Limited coverage area: They have a narrow beam width, which means that they have a limited coverage area. They are best suited for point-to-point communications over long distances.
Unidirectional: They are unidirectional, which means that they can only transmit or receive signals in one direction. This can be a disadvantage if the direction of the signal changes frequently.
Size: They can be large and cumbersome, making them difficult to install in certain locations.
Weather-sensitive: They can be sensitive to weather conditions, such as wind and rain, which can affect their performance.
