Enclosure Shelves, Drawers & Tray Accessories

filter_list

Interior components are easily added at any time to a modular enclosure. These include: shelves and sliding shelves, drawers and trays. The flexibility provided by a modular enclosure allows for easier installation and removal of internal components as needed.

Hoffman Frame Pull-Out Shelves allow easy access to shelf-mounted devices. The shelves mount to the front and rear frame uprights of PROLINE enclosures. They are made of 16 gauge steel with a load rating of 110 pounds. Hoffman Pull-Out Shelf Locks are used in combination with the Pull-Out Shelves to hold the shelves in the recessed position. They can be mounted on either the right or left side. The black, quarter-turn locks have a wing knob for easy hand operation. The Pull-Out Shelf Locks are not compatible with the Frame Pull-Out Shelves.

Hoffman Rack-Mount Sliding Shelves fit 19 inch and 23 inch rack spacing and adjust to fit multiple-depth enclosures and rack angle placements. The shelves are made of 14 gauge steel and have a load rating of 150 pounds with four corner mounting, and 75 pounds with 2 post or front-rack-angle cabinet mounting. Hoffman Cable Manager Arms mount to the back of sliding equipment shelves on the right or left side. The arms control cable movement as the shelves slide in or out.

Products

Products Per Page: Sort By:
Rittal 8800580 Installation kit For component shelves with 19" adapter profiles in TS
Rittal 8800580 Installation kit For component shelves with 19" adapter profiles in TS
$228.36
Rittal 8800580 Interior Fittings Accessories, With 19" fittings in TS, installed between the front and rear adaptor profiles or adaptor pieces, 482.6 mm (19˝) in 600 mm wide enclosures.
Rittal 8800560 Installation kit For component shelves with 19" adapter profiles in TS
Rittal 8800560 Installation kit For component shelves with 19" adapter profiles in TS
$194.35
Rittal 8800560 Interior Fittings Accessories, With 19" fittings in TS, installed between the front and rear adaptor profiles or adaptor pieces, 482.6 mm (19˝) in 600 mm wide enclosures.
Rittal 7161700 Telescopic Rails for component shelves installed in VX frames and for upgrading existing VX and TS applications
Rittal 7161700 Telescopic Rails for component shelves installed in VX frames and for upgrading existing VX and TS applications
$329.49
Rittal 7161700 Interior Fittings Accessories, To retro-fit fixed component shelves for full withdrawal by replacing the existing fastening bolts or mounting rails (heavy-duty version) with telescopic slides.
Rittal 7161000 Telescopic Rails for component shelves installed in VX frames and for upgrading existing VX and TS applications
Rittal 7161000 Telescopic Rails for component shelves installed in VX frames and for upgrading existing VX and TS applications
$369.85
Rittal 7161000 Interior Fittings Accessories, To retro-fit fixed component shelves for full withdrawal by replacing the existing fastening bolts or mounting rails (heavy-duty version) with telescopic slides.
Rittal 7081000 Telescopic Rails for component shelves installed in VX frames and for upgrading existing VX and TS applications
Rittal 7081000 Telescopic Rails for component shelves installed in VX frames and for upgrading existing VX and TS applications
$287.89
Rittal 7081000 Interior Fittings Accessories, To retro-fit fixed component shelves for full withdrawal by replacing the existing fastening bolts or mounting rails (heavy-duty version) with telescopic slides.
Rittal 7066000 Telescopic Rails for component shelves installed in VX frames and for upgrading existing VX and TS applications
Rittal 7066000 Telescopic Rails for component shelves installed in VX frames and for upgrading existing VX and TS applications
$425.35
Rittal 7066000 Interior Fittings Accessories, To retro-fit fixed component shelves for full withdrawal by replacing the existing fastening bolts or mounting rails (heavy-duty version) with telescopic slides.
Rittal 7065000 Telescopic Rails for component shelves installed in VX frames and for upgrading existing VX and TS applications
Rittal 7065000 Telescopic Rails for component shelves installed in VX frames and for upgrading existing VX and TS applications
$377.35
Rittal 7065000 Interior Fittings Accessories, To retro-fit fixed component shelves for full withdrawal by replacing the existing fastening bolts or mounting rails (heavy-duty version) with telescopic slides.
Rittal 7064000 Telescopic Rails for component shelves installed in VX frames and for upgrading existing VX and TS applications
Rittal 7064000 Telescopic Rails for component shelves installed in VX frames and for upgrading existing VX and TS applications
$358.73
Rittal 7064000 Interior Fittings Accessories, To retro-fit fixed component shelves for full withdrawal by replacing the existing fastening bolts or mounting rails (heavy-duty version) with telescopic slides.
Rittal 7061000 Telescopic Rails for component shelves installed in VX frames and for upgrading existing VX and TS applications
Rittal 7061000 Telescopic Rails for component shelves installed in VX frames and for upgrading existing VX and TS applications
$271.01
Rittal 7061000 Interior Fittings Accessories, To retro-fit fixed component shelves for full withdrawal by replacing the existing fastening bolts or mounting rails (heavy-duty version) with telescopic slides.
Rittal 5501730 Handles for pull-out component shelves
Rittal 5501730 Handles for pull-out component shelves
$39.20
Rittal 5501730 Interior Fittings Accessories, Handles for convenient use of component shelves.

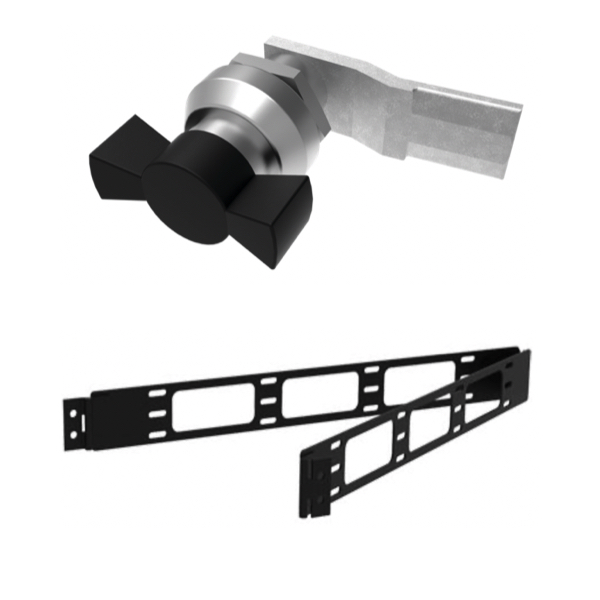

Hoffman PSHLOCK Pull-Out Shelf Lock
Hoffman PSHLOCK Pull-Out Shelf Lock
$78.26
Hoffman PSHLOCK Pull-Out Shelf Lock is used in combination with the Pull-Out Shelf to hold the shelf in the recessed position. It can be mounted on either the left or right side. This black quarter-turn lock has a wing knob for easy hand operation.
Hoffman PHCB Cable Manager Arm for Sliding Equipment Shelf
Hoffman PHCB Cable Manager Arm for Sliding Equipment Shelf
$266.00
Hoffman PHCB (Black) Cable Manager Arm for Sliding Equipment Shelf Cable Manager Arm mounts to back of sliding equipment shelf on right or left side. Controls cable movement as shelf slides in and out.



Common modifications or accessories that are used to enhance electrical cabinets.

Lighting kits. Lighting kits are often used in outdoor applications. There are many different styles of lighting kits that can be used, but LEDs have become the preferred lighting solution in the past several years.

Pressure switches. Pressure switches operate on a spring and react to the cabinet door opening and closing. They can be used for lights, intrusions alarms and exhaust fans.

Passive air vents. Passive air vents allow natural air circulation to flow through a cabinet providing proper ventilation.

Enclosure fans. Enclosure air fans are used when more ventilation is required. The size of the fan will depend on the size of the enclosure as well as the amount of air that needs to be circulated.

Air conditioners. Air conditioners are used when ambient air circulation is inadequate to cool the cabinet. The air conditioner size will depend on the enclosure size, ambient air temperature and heat generated within the cabinet.

Heaters. Heaters are used when a cabinet is located in areas that may be exposed to cold temperatures.

Locking mechanisms. Locking mechanisms are used to secure cabinets.

Conduit hole seals. Conduit hole seals are used on cabinets that have holes that need to be plugged after conduit has been removed.
