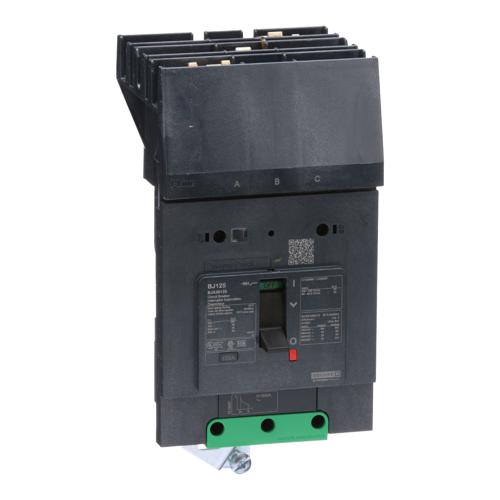

Schneider Electric BJA36125 PowerPact B Circuit Breaker, 125A, 3P, 600Y/347V AC, 25kA at 600Y/347 UL, I-Line
Schneider BJA36125 Circuit breaker 125 A 3P 100 kA 208Y/120 V AC 50/60 Hz UL 489, 100 kA 240 V AC 50/60 Hz UL 489, 65 kA 480/277 V AC 50/60 Hz UL 489, 65 kA 480 V AC 50/60 Hz UL 489, 25 kA 600Y/347 V AC 50/60 Hz UL 489, 50 kA 250 V DC UL 489 ABC 80 % I-Line Distribution BJ 125 UL
Normally In Stock! Order now!
Condition: New
CALL FOR LEAD TIME
Price: $7903.50
Sale Price:
$3846.25
Schneider BJA36125 Circuit breaker 125 A 3P 100 kA 208Y/120 V AC 50/60 Hz UL 489, 100 kA 240 V AC 50/60 Hz UL 489, 65 kA 480/277 V AC 50/60 Hz UL 489, 65 kA 480 V AC 50/60 Hz UL 489, 25 kA 600Y/347 V AC 50/60 Hz UL 489, 50 kA 250 V DC UL 489 ABC 80 % I-Line Distribution BJ 125 UL
| Specifications | |
| Amperage (Molded Case Breaker) | 125 Amp |
| Poles (Molded Case Breaker) | Three Pole |
| Interrupt Code (Molded Case Breaker) | J Interrupt Rating |
| Frame Type (Molded Case Breaker) | B Frame |
| UL Listing (Molded Case Breaker) | UL 489 |
| Mounting (Molded Case Breaker) | I-Line |
| Maximum Voltage (Molded Case Breaker) | 690 VAC |
| Manufacturer | Schneider Electric |
| Manufacturer | Square D |
| Component | Molded Case Circuit Breaker |
| Interrupt Rating (Molded Case Breaker) | 65 kA 480 Volt |
| Interrupt Rating (Molded Case Breaker) | 50 kA 250 Volt |
| Interrupt Rating (Molded Case Breaker) | 100 kA 240 Volt |
| Interrupt Rating (Molded Case Breaker) | 100 kA 208Y/120 Volt |
| Interrupt Rating (Molded Case Breaker) | 25 kA 600Y/347 Volt |
| Interrupt Rating (Molded Case Breaker) | 65 kA 480/277 Volt |
| Phase | Single Phase 3 Wires |
| Number of Spaces | 80 |
