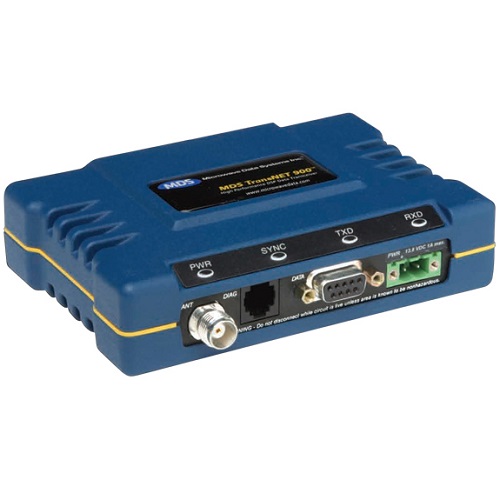

MDS TransNet Radio MDS EL805 Transnet 900 MHz Radio (Standard Mount)
MDS Radio EL805-MD9X1AFCS0WN MDSTransNet Radio EL805 with Standard Mount. Transnet 900 MHz Radio. Master or Slave Serial Unlicensed Radio (Master or Slave), 6-30vdc with data rates to 115.2 Kbps, max range of 60 miles and typical range of 25 miles, Store and foreward capable, sensitivity of -108 at 256k, temperature range of -22 to 140 degrees fahrenheit, power consumption of 2 A. GE MDS REQUIRES END USER INFORMATION ON ALL MDS SALES. PLEASE PROVIDE END USER INFORMATION IN NOTES OR YOUR SALES REP WILL CALL FOR THE INFORMATION.
Normally In Stock! Order now!
Condition: New
IN STOCK. SHIPS SAME DAY IF ORDERED BEFORE 12:00PM MST
Price: $1657.70
Sale Price:
$1525.84
MDS TransNet Radio EL805 Transnet 900 MHz Radio. Serial Unlicensed Radio (Master or Slave), 6-30vdc with data rates to 115.2 Kbps, max range of 60 miles and typical range of 25 miles, Store and foreward capable, sensitivity of -108 at 256k, temperature range of -22 to 140 degrees fahrenheit, power consumption of 2 A. The TransNET 900 radio is ideal for SCADA communications in remote locations. The Transnet is a durable and very reliable data radio even in difficult situations. The Transnet 900 works in almost all Serial protocols and does not require a license. The radio is enclosed with a compact rugged case that is Din Rail Mountable ideal for control cabinets. It has a RS232 Serial data port and TNC antenna port.
| Specifications | |
| Radio 2 Type | None |
| Radio Capability | Point to Multipoint |
| Radio Voltage | 12 VDC |
| Radio Voltage | 24 VDC |
| Radio Carrier Power | 1 watt |
| Radio Data Protocol | Serial |
| Radio Temperature Range Low | -40f |
| Radio Temperature Range High | 158f |
| Radio Encryption | AES-128 |
| Radio Type | 900 MHz Serial Unlicensed |
| Radio Range | 60 miles |
| Radio Housing | Enclosed |
| Radio Sensitivity | -105 |
| Radio Serial Ports | 1 Serial Port |
| Radio RF Connector | TNC Female |
| Radio Redundancy | Non-Redundant 1 Radio |
| Radio Mounting | Standard Mount |
| Radio Data Rate | 115.2 Kbps |
| Radio Antenna Ports | 1 Antenna Port |
| Manufacturer | MDS |
| Line | TransNet |
| Component | Radio |
