MDS Transnet Radio

Filter

GE’s MDS is an end-to-end industrial wireless communication provider which carries serial and IP/Ethernet traffic, as well as analog and digital I/O signals connected to field sensors and devices, accommodating an extensive variety of industrial protocols. GE’s MDS wireless radios have been rated and tested to harsh specifications and operate over licensed and unlicensed narrowband communication in a variety of frequencies.

Frequency-hopping spread spectrum (FHSS) is wireless technology that transmits radio signals by rapidly changing the carrier frequency among many distinct frequencies in a large spectral band. The frequency band is divided into sub-bands and signals “hop” their carrier frequencies among the sub-bands in a predetermined order. The “hopping” frequencies are difficult to intercept and interference at a specific frequency will only last a short time.

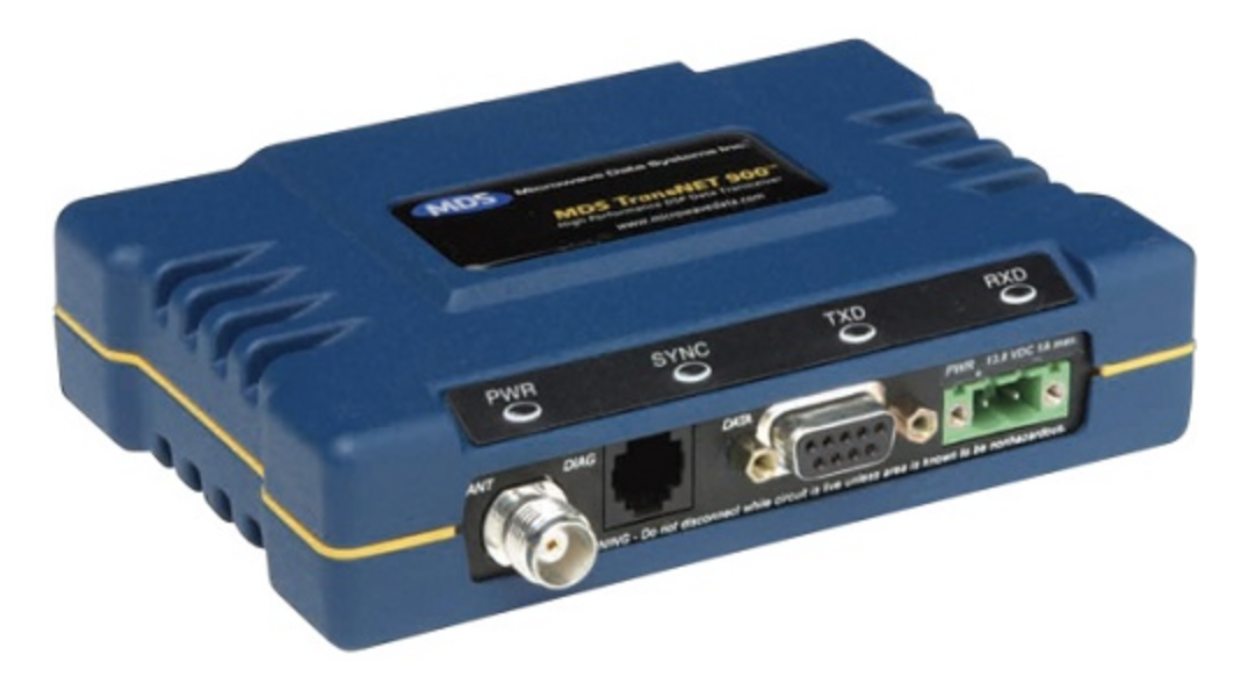

MDS TransNET radios provide transparent data communications for nearly all SCADA, EFM and Telemetry protocols including Modbus and DNP3. They operate up to 30 miles with 115.2 Kbps throughput. Any TransNET radio may be configured as a repeater to extend the operating range of the network. Multiple repeaters may exist at any level of the network preventing single radio failure from disabling the entire network. TransNET radios provide forward error correction and CRC/ARQ multiple re-sends and proprietary hopping algorithm among 128 channels. They are CSA Class I, Division 2 approved for hazardous locations and operate in temperatures from -40 degrees Celsius to 70 degrees Celsius.

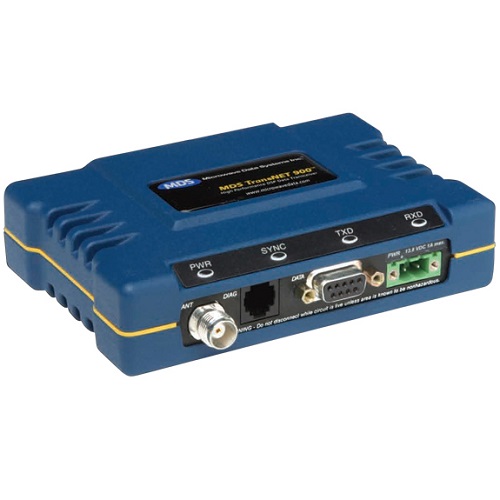

MDS TransNet Radio MDS EL805 Transnet 900 MHz Radio (Standard Mount)

$1525.84 $1657.70

MDS TransNet Radio EL805 Transnet 900 MHz Radio. Serial Unlicensed Radio (Master or Slave), 6-30vdc with data rates to 115.2 Kbps, max range of 60 miles and typical range of 25 miles, Store and foreward capable, sensitivity of -108 at 256k, temperature range of -22 to 140 degrees fahrenheit, power consumption of 2 A. The TransNET 900 radio is ideal for SCADA communications in remote locations. The Transnet is a durable and very reliable data radio even in difficult situations. The Transnet 900 works in almost all Serial protocols and does not require a license. The radio is enclosed with a compact rugged case that is Din Rail Mountable ideal for control cabinets. It has a RS232 Serial data port and TNC antenna port.

+ Add to Job + Add to Favorites + Add to Quick Quote

Cellular radios are used in situations where traditional radio communication networks may not exist or where direct line of sight on those networks may be hard to achieve. Cellular radios function in similar ways to how many of the devices used on a daily basis, like cell phones. Cellular phones rely on cellular communication towers to transmit data to and from phones and other mobile devices. Depending on the type of network those devices are designed for will dictate things such as speed and data throughput capacity.

The same principles apply to industrial style cellular radios. Just like cell phones, these radios rely on third party transmission signals in order to properly communicate. And just cell phones, the hardware specifications of the radios will dictate what type of cellular network they will have access to. In situations where the data requirements are very low, for example, a scenario where monitoring only a few simple data points once every hour or so, a network with higher speed capabilities is not needed.
However, monitoring something like a live video feed or other complex data and information over that network, a radio and network capable of higher speeds and data capacities will be necessary.

One of the biggest drawbacks to using cellular networks is cost. While the radios themselves are usually priced in line with other types of industrial communication radios, there will almost always be a monthly service charge, which can vary greatly depending on the demands of the specific application. These costs can add up over time making the cellular radio option an expensive one. Also, because the radio is operating on a third-party network, the ability to customize and configure the radio network will be greatly limited.

While cellular radios can be a great option in certain situations, typically, traditional industrial radios will provide the most flexible and reliable solution over time while saving on the cost of a monthly service charge. However, when traditional communication methods fail, cellular radios can provide a reliable and effective alternative.
