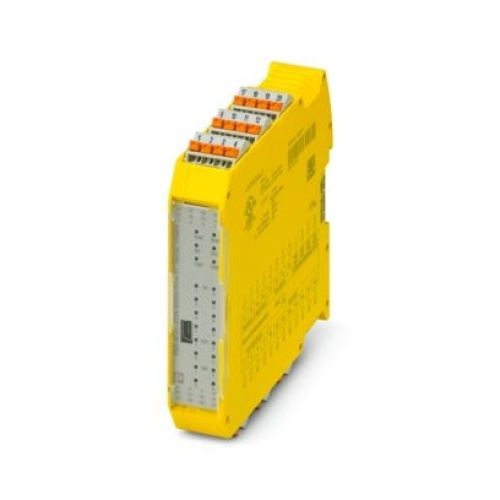

PSR-M-B2-SDI8-SDO4-DO4-PI Phoenix Contact 1104975 Safety module
PSR-M-B2-SDI8-SDO4-DO4-PI Phoenix 1104975 Safety module
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $757.06
Sale Price:
$630.88
Configurable safety module (basic module), 8 safe inputs, 4 safe outputs, 4 reset inputs or 4 signal outputs, 4 clock outputs, can be extended via TBUS, up to SILCL 3, Cat. 4/PL e, SIL 3, plug-in Push-in terminal block, TBUS connector not included
| Specifications | |
| Safety Degree of Protection | IP20 |
| Safety Connection Method | Push-in connection |
| Safety Interfaces | TBUS |
| Manufacturer | Phoenix Contact |
| Safety Relay Safety Level | SIL Cat 4 |
| Safety Relay Supply Voltage | 24 Volt |
| Component | Safety Module |
