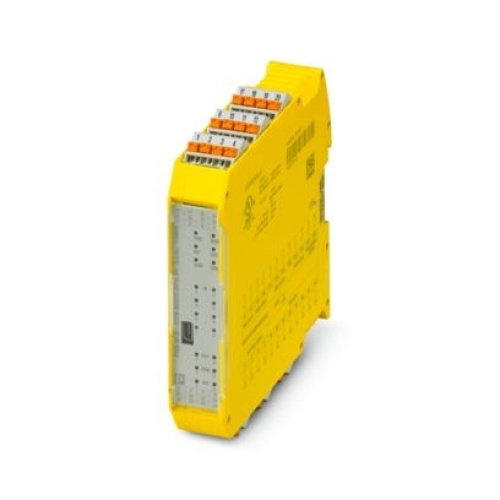

PSR-M-B1-SDI8-SDO2-DO2-PI Phoenix Contact 1104972 Safety module
PSR-M-B1-SDI8-SDO2-DO2-PI Phoenix 1104972 Safety module
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $594.04
Sale Price:
$495.03
Configurable safety module (basic module), 8 safe inputs, 2 safe outputs, 2 reset inputs, 2 signal outputs, 4 clock outputs, can be extended via TBUS, up to SILCL 3, Cat. 4/PL e, SIL 3, plug-in Push-in terminal block, TBUS connector not included
| Specifications | |
| Safety Degree of Protection | IP20 |
| Safety Connection Method | Push-in connection |
| Safety Interfaces | TBUS |
| Manufacturer | Phoenix Contact |
| Safety Relay Safety Level | SIL Cat 4 |
| Safety Relay Supply Voltage | 24 Volt |
| Component | Safety Module |
- Flexible extension with safe inputs and outputs
- Fast startup, thanks to easy hardware and software configuration
- Machine downtimes minimized with comprehensive, easy-to-understand diagnostics
- Cost-effective safety solution with a high level of adaptability to individual requirements
- Possibility of connecting fieldbus gateways for bidirectional communication between the base module and the higher-level controller
- Low housing width of just 22.6 mm
- Tool-free and time-saving installation thanks to Push-in technology
- Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
- Suitable for elevator applications in accordance with EN 81-20
