TTC-6P-3-HF-M-12DC-UT-I Phoenix Contact 2906744 Surge protection for information technology Surge protection device
TTC-6P-3-HF-M-12DC-UT-I Phoenix 2906744 Surge protection for information technology 12 VDC Screw connection Surge protection device Surge Protection
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $248.75
Sale Price:
$206.96

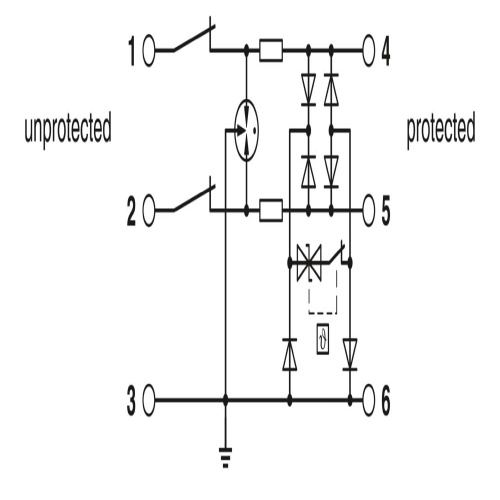

Surge protection, consisting of protective plug and base element, with integrated status indicator and knife disconnection for three signal wires with common reference potential. For HF applications and telecommunications interfaces without supply voltage.
| Specifications | |
| Fault Warning | Optical |
| Fault Warning | remote indicator contact |
| Arrester Class according to IEC | II |
| Arrester Class according to IEC | T2 |
| Manufacturer | Phoenix Contact |
| Connection Method | Screw connection |
| Surge Protector Line Voltage | 12 Volt |
| Surge Protector Type | Surge arrester |
| Maximum Continous Voltage | 150 Volt |
| Max Discharge Capacity | 40 A |
| Nominal Discharge Current | 20 kA |
- Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
- Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
- Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features

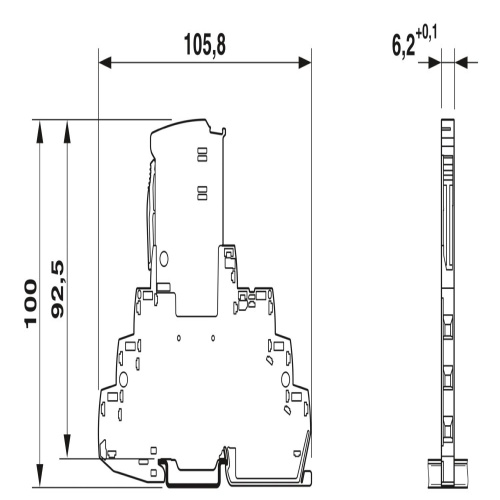

- Space-saving and cost-saving with a narrow overall width of just 6 mm
- The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Customer Reviews
0.0
All Reviews
Phoenix 2906744 Application Note English.pdf
Phoenix 2906744 CAD data International.dxf
Phoenix 2906744 CAD data International.pdf
Phoenix 2906744 CAD data International.stp
Phoenix 2906744 Certification International.pdf
Phoenix 2906744 Certification International-2.pdf
Phoenix 2906744 Flyer English.pdf
Phoenix 2906744 Flyer English-2.pdf
Phoenix 2906744 Manufacturers declaration English.pdf
Phoenix 2906744 Manufacturers declaration International.pdf
Phoenix 2906744 Surge Protection English.pdf
Phoenix 2906744 Tender Text English.zip
