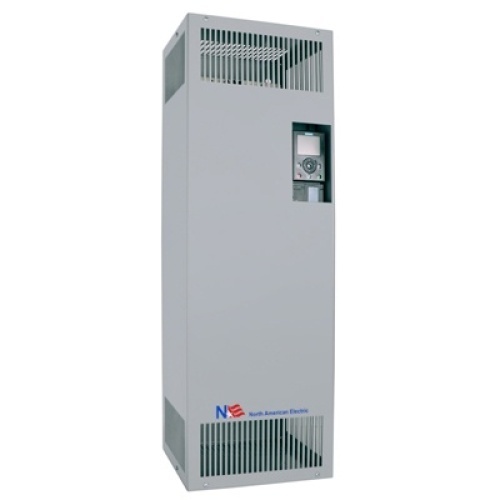

NAE 6SL3220-3YE46-0UB0-NEMA1 - 150 HP, VT , 180 Amp, 480 Volt 3 Phase

NAE 6SL3220-3YE46-0UB0-NEMA1 150 HP, 480V, Variable Frequency Drive, General Purpose, Variable Torque / Low Overload, Package includes: Intelligent Operator Panel (IOP-2), High Resolution Graphic Color Keypad, DC Choke Built-In, 180 Amps, NEMA 1 Enclosure, Dimensions 44.7'' H, 13.3'' W, 14.9'' D, Siemens G120X Series Drive, Chassis Model # 6SL3220-3YE46-0UB0, Communication: USS, Modbus, RTU, BACnet MS / TP, Chassis Frame FSF, Two (2) Year Warranty, Some Assembly Required

Specifications
VFD Torque	Variable Torque
VFD Amperage Output	180 Amp
VFD Horsepower Output	150 HP
VFD Input Voltage	480 Volt Three Phase
VFD Output Voltage	480 Volt Three Phase
VFD NEMA-IP Rating	NEMA 1
Manufacturer	NAE
VFD Line	G120X
