Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Downloads
Phoenix 3210088 CAD data International.dxf
Phoenix 3210088 CAD data International.pdf
Phoenix 3210088 CAD data International.stp
Phoenix 3210088 Manufacturers declaration International.pdf
Phoenix 3210088 Manufacturers declaration International-2.pdf
Phoenix 3210088 Safety note English.pdf
Phoenix 3210088 Tender Text English.zip

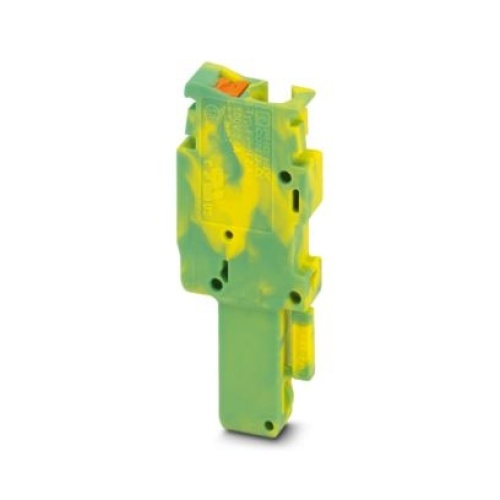

PP-H 2,5/1-L GNYE Phoenix Contact 3210088 green-yellow Terminal Plug
PP-H 2,5/1-L GNYE Phoenix 3210088 Terminal Plug Push-in connection 500 V 24 Amp green-yellow Terminal Blocks
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (MUST BUY IN PACKS OF 50)
Price: $2.67
Sale Price:
$1.64
Plug, nom. voltage: 500 V, nominal current: 24 A, connection method: Push-in connection, number of connections: 1, number of positions: 1, cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 5.2 mm, height: 40.2 mm, color: green-yellow
| Specifications | |
| Terminal Block Voltage Rating | 500 Volt |
| Terminal Block Width | 5.2 mm |
| Terminal Block Number of Levels | 1 |
| Terminal Block Number of Connections | 1 |
| Terminal Block Max Wire Size | 12 |
| Terminal Block Min Wire Size | 26 |
| Terminal Block Connection Method | Push-in Connection |
| Jumper Pitch | 5.2 mm |
| Terminal Block Amperage | 24 Amp |
| Terminal Block Component Color | Green/Yellow |
| Jumper Number of Positions | 1 |
| Manufacturer | Phoenix Contact |
| Component | Plug |
| Component | Terminal plug |
Customer Reviews
0.0
All Reviews
Usually ships Same Day or Next Day (MUST BUY IN PACKS OF 50)
