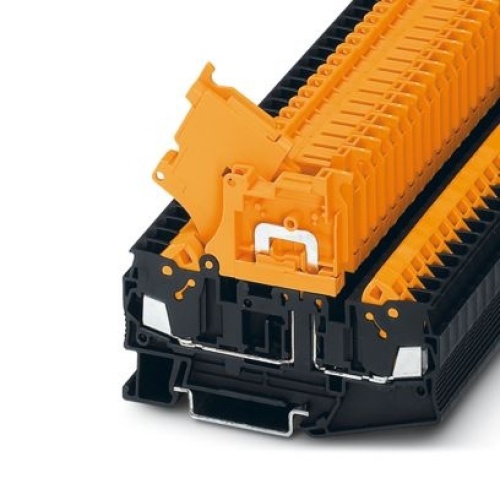

QTC 2,5-HEDI Phoenix Contact 3206678 black/orange Disconnect Terminal Block
QTC 2,5-HEDI Phoenix 3206678 Disconnect terminal block Quick connection 500 V 20 Amp black/orange Terminal Blocks
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (MUST BUY IN PACKS OF 50)
Price: $13.43
Sale Price:
$8.36
Lever-type disconnect terminal block, nom. voltage: 500 V, nominal current: 20 A, connection method: Quick connection, number of connections: 2, cross section: 0.5 mm² - 2.5 mm², AWG: 20 - 14, width: 6.2 mm, color: black/orange, mounting type: NS 35/7,5, NS 35/15
| Specifications | |
| Terminal Block Indication | No Indicator |
| Terminal Block Voltage Rating | 500 Volt |
| Terminal Block Disconnect | Knife Disconnect |
| Terminal Block Fused | Not Fused |
| Terminal Block Width | 6.2 mm |
| Terminal Block Number of Levels | 1 |
| Terminal Block Number of Connections | 2 |
| Terminal Block Grounded | Not Grounded |
| Terminal Block Min Wire Size | 20 |
| Terminal Block Connection Method | Quick Connection |
| Terminal Block Max Wire Size | 14 |
| Terminal Block Component Color | Black/Orange |
| Component | Terminal block |
| Manufacturer | Phoenix Contact |
| Terminal Block Amperage | 20 Amp |
| Sub Component | Disconnect terminal block |
| Sub Component | Lever-Type Disconnect Terminal Block |
