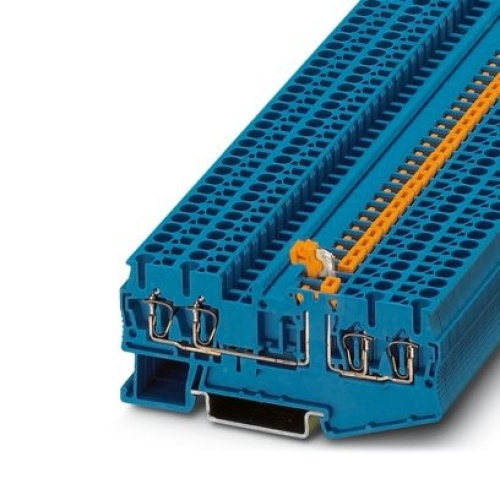

ST 2,5-QUATTRO-MT BU Phoenix Contact 3037834 blue Disconnect Terminal Block
ST 2,5-QUATTRO-MT BU Phoenix 3037834 Disconnect terminal block Spring-cage connection 400 V 20 Amp blue Terminal Blocks
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (MUST BUY IN PACKS OF 50)
Price: $10.01
Sale Price:
$6.14
Knife disconnect terminal block, nom. voltage: 400 V, nominal current: 20 A, connection method: Spring-cage connection, cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, length: 84 mm, width: 5.2 mm, color: blue, mounting: NS 35/7,5, NS 35/15
| Specifications | |
| Terminal Block Indication | No Indicator |
| Terminal Block Voltage Rating | 400 Volt |
| Terminal Block Disconnect | Knife Disconnect |
| Terminal Block Fused | Not Fused |
| Terminal Block Width | 5.2 mm |
| Terminal Block Number of Levels | 1 |
| Terminal Block Number of Connections | 4 |
| Terminal Block Component Color | Blue |
| Terminal Block Grounded | Not Grounded |
| Terminal Block Max Wire Size | 12 |
| Terminal Block Connection Method | Spring-cage Connection |
| Terminal Block Min Wire Size | 28 |
| Component | Terminal block |
| Manufacturer | Phoenix Contact |
| Terminal Block Amperage | 20 Amp |
| Sub Component | Disconnect terminal block |
| Sub Component | Knife Disconnect Terminal Block |
