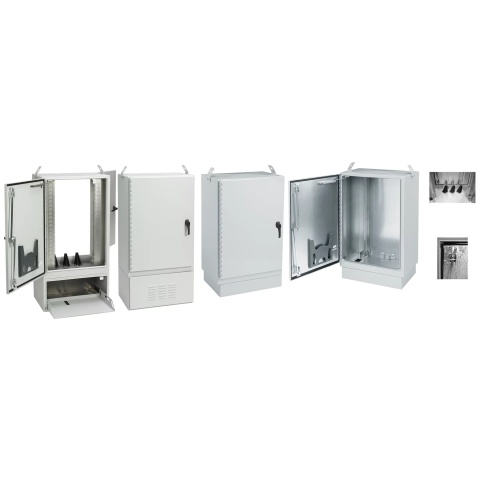

Hoffman T503044FTTXDASA 51.0"x31.0"x45.0" FTTX Fiber Optic Cabinet Package, Type 4X
Hoffman T503044FTTXDASA 51.0"x31.0"x45.0" Free Standing FTTX Fiber Optic Cabinet Package, Type 4X (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $24229.40
Sale Price:
$24054.21
Hoffman T503044FTTXDASA 51.0"x31.0"x45.0" Free Standing FTTX Fiber Optic Cabinet Package, Type 4X
| Specifications | |
| Enclosure Hinge Type | Standard Hinge |
| Enclosure Lock Type | Padlocking |
| Dual Access Enclosures | Dual Access Enclosure |
| Enclosure Composition | Aluminum |
| Enclosure Latch Type | 3 Point |
| Rack Units | 22 |
| Enclosure Height | 51.0" |
| Enclosure Width | 31.0" |
| Component | Fiber Optic Cabinet |
| Manufacturer | Hoffman |
| Enclosure Depth | 45" |
| Enclosure Door Type | Solid |
| Enclosure Number of Doors | 1 Door |
| Enclosure Mount Type | Free Standing |
- Seamless foam-in-place gasket seals doors against moisture and dust
- Available with or without battery compartment
- 3-point latching mechanisms and padlocking handles on doors provide security
- Wind latch mechanisms on doors control door when open for equipment maintenance
- Available with either single- or dual-access doors on front and rear for convenient access
- Standard pitched roof promotes water runoff
- Removable lifting lugs (2) for easy installation
- Base of cabinet has a 5.00-inch (127-mm) high aluminum mounting plinth to allow for cable alignment
- Cabinet top insulation helps prevent the formation of condensation and reduce solar gain inside cabinet. Cabinet side insulation is optional
- Use cage nuts to mount equipment
- Rack angles adjustable for 19- or 23-inch spacing without modifications
- Three pyramidal boots provided at base of cabinet for sealing various sizes of cables
- All fasteners are stainless steel to maintain professional appearance in severe outdoor climate conditions
Customer Reviews
0.0
All Reviews
Hoffman T503044FTTXDASA 2D DXF CAD.zip
Hoffman T503044FTTXDASA 3D STEP CAD.zip
Hoffman T503044FTTXDASA Declaration of Compliance.pdf

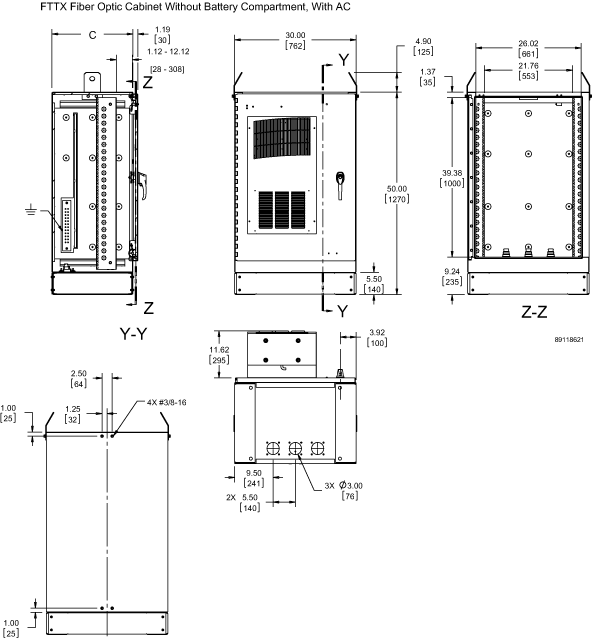

Hoffman T503044FTTXDASA Dimension Drawing.gif
Hoffman T503044FTTXDASA EU Certification.pdf
Hoffman T503044FTTXDASA Large Enclosure Handling Manual.pdf
Hoffman T503044FTTXDASA Spec Sheet.pdf
Hoffman T503044FTTXDASA UL Certification.pdf
