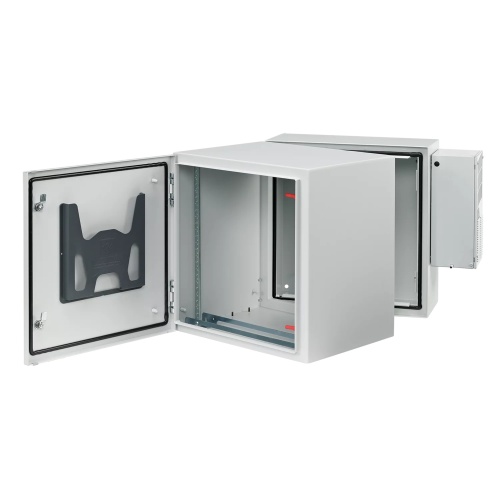

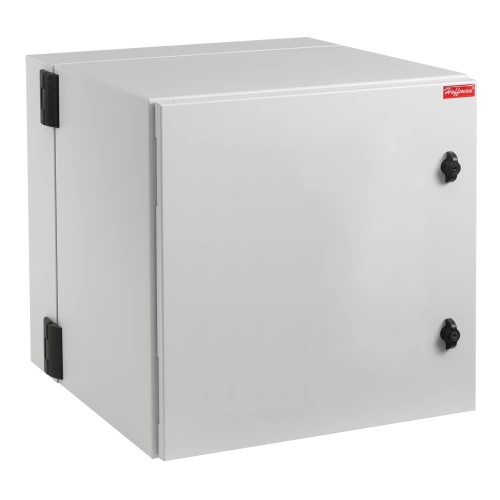

Hoffman PTHS242430G4A 25.0"x24.0"x32.0" AccessPlus ProTek Double-Hinged Network Cabinet
Hoffman PTHS242430G4A 25.0"x24.0"x32.0" Wall Mount AccessPlus ProTek Double-Hinged Network Cabinet (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $9157.20
Sale Price:
$6941.86
Hoffman PTHS242430G4A 25.0"x24.0"x32.0" AccessPlus ProTek Double-Hinged Network Cabinet ProTek Double-Hinged cabinets are an excellent, off-the-shelf choice for mounting 19-in. rack, panel-mounted devices or other electronic equipment. The cabinets are designed to provide both front and rear access to 19-in. rack-mounted equipment. They provide protection against water, dirt, corrosive agents and other contaminants.
| Specifications | |
| Enclosure Environment Rating | Outdoor-Indoor |
| Enclosure Hinge Type | Standard Hinge |
| Enclosure Latch Type | Quarter Turn |
| Enclosure Interior Color | Gray |
| Enclosure Lock Type | Keylocking |
| Enclosure Depth | 32" |
| Enclosure Composition | Painted Steel |
| Rack Units | 12 |
| Enclosure NEMA Rating | NEMA Type 4 |
| Enclosure NEMA Rating | NEMA Type 4X |
| Manufacturer | Hoffman |
| Line | ProTek |
| Enclosure Height | 25" |
| Enclosure Door Type | Solid |
| Enclosure Mount Type | Wall Mount |
| Enclosure Width | 24" |
| Component | Network Enclosure |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 12 |
| Enclosure Type | ProTek Double-Hinged Cabinet |
- Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Solid door provides complete physical and visual protection
- Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
- Key-locking wing knob is included on painted steel cabinet, providing access control to the cabinet, two keys are included with each cabinet
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
- On 28-inch (700 mm) wide enclosures, a 4-inch vertical cable manager with composite fingers is provided on hinge side of cabinet
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet, additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- Stainless steel cabinet is provided with a quarter-turn slotted latch
Customer Reviews
0.0
All Reviews
Hoffman PTHS242430G4A 2D DXF CAD.zip
Hoffman PTHS242430G4A 3D STEP CAD.zip
Hoffman PTHS242430G4A Declaration of Compliance.pdf

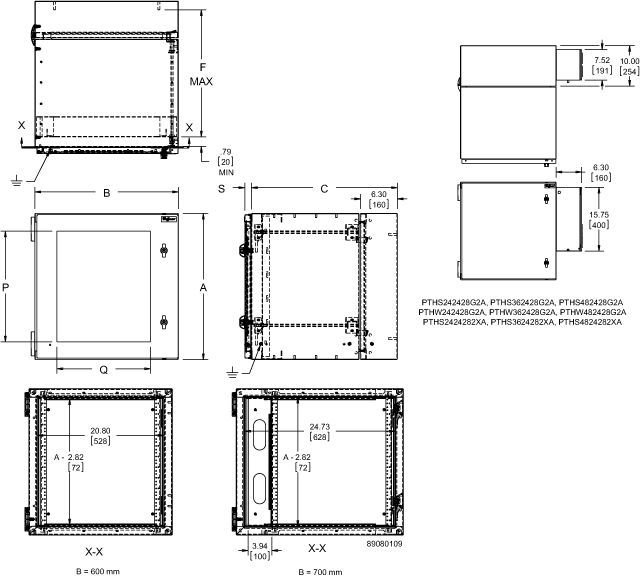

Hoffman PTHS242430G4A Dimension Drawing.gif
Hoffman PTHS242430G4A EU Declaration of Conformity.pdf
Hoffman PTHS242430G4A Instruction Manual.pdf
Hoffman PTHS242430G4A Spec Sheet.pdf
Hoffman PTHS242430G4A UL Certification.pdf
