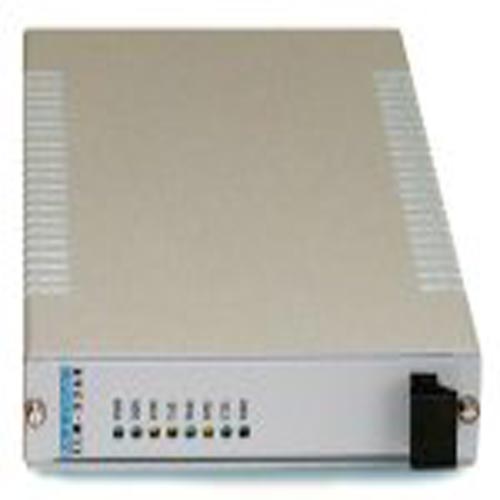

Mulogic DLM-336SVR2 Dial-Up Serial Voiceband Modem (Standalone)
Mulogic DLM336DVR2 Standalone Dial-Up Serial Modem 24V-48Vdc. The DLM-336 is an industrial modem that communicates over dial-up lines or 2-wire leased lines with data rates up to 33.6 kbps. It also be used as a Class1 Fax modem for communication with group 3 fax machines. Internal power supply (18-64Vdc) or (100-240Vac with power adapter sold sepreratly).
Normally In Stock! Order now!
Condition: New
Usually ships within 2 days
Price: $672.00
Sale Price:
$588.00
Mulogic DLM336DVR2 Standalone Dial-Up Serial Modem 24V-48Vdc internal power supply (18-64Vdc) or (100-240Vac with power adapter sold sepreratly). The MuLogic DLM-336 is a voiceband modem for reliable data communication over dial-up lines and 2-wire leased lines. The modem supports full and half duplex operation modes for data transmission. RJ-11 connector for telephone set(PSTN line at RJ-11 connector). Line impedance 600 Ohms,Transmit level: -9 .. -15 dBm,Receive threshold -43 dBm On,-48 dBm Off. The DLM-336 can also be used as a Class1 Fax modem for communication with group 3 fax machines. Although the DLM-336 is mainly intended for dail-up line applications,the modem can also be usOperating temperature of -13 F to 158 F.
| Specifications | |
| (Modem/Router) Mounting | Standalone |
| (Modem/Router) Case Type | Plastic |
| (Modem/Router) USB Ports | No USB 2.0 Ports |
| (Modem/Router) Communication Medium | Leased Lines |
| (Modem/Router) Data Rate Serial | 33.6 Kbps |
| (Modem/Router) RJ11 Ports | 1 RJ11 Port |
| (Modem/Router) Low Temperature Range | -13 F |
| (Modem/Router) High Temperature Range | 158 F |
| (Modem/Router) Data Type | Serial |
| (Modem/Router) Type | Fax Modem |
| (Modem/Router) Communication Medium | Dial-Up Lines |
| Component | Dial Up Modem |
| (Modem/Router) Voltage Rating | 24 Volt |
| Manufacturer | Mulogic |
| (Modem/Router) Voltage Rating | 48 Volt |
