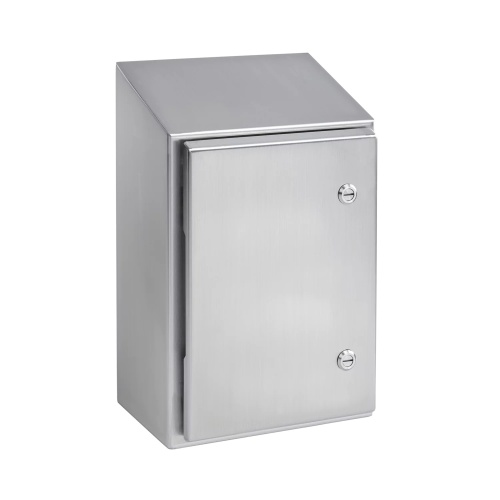

Hoffman WS242008SS WATERSHED Stainless Steel Enclosure
Hoffman WS242008SS WATERSHED Enclosure Stainless Steel 24 x 20 x 8 inch (HxWxD) WATERSHED Type 4X 304 Stainless Steel with stainless steel lift-off bullet-style hinges and Stainless steel quarter-turn latches furnished with flush slotted insert. (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $3196.70
Sale Price:
$2244.09
Hoffman WS242008SS WATERSHED Stainless Steel Enclosure
| Specifications | |
| Enclosure Depth | 8" |
| Enclosure Environment Rating | Outdoor-Indoor |
| Enclosure Hinge Type | Standard Hinge |
| Enclosure Latch Type | Quarter Turn |
| Enclosure Lock Type | Padlocking |
| Enclosure Composition | 304 Stainless Steel |
| Enclosure NEMA Rating | NEMA Type 4 |
| Enclosure NEMA Rating | NEMA Type 4X |
| Enclosure Width | 20" |
| Enclosure Height | 24" |
| Line | WaterShed |
| Manufacturer | Hoffman |
| Enclosure Door Type | Solid |
| Enclosure Mount Type | Wall Mount |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 12 |
| Component | Stainless Steel Enclosure |
- 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
- Hinges are shielded by door
- Hinged side of door has provisions to allow direct flushing of hinge area
- 97-degree door opening
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Seams continuously welded and ground smooth
- Door edges are sloped 20-degrees at top and bottom edges to facilitate runoff
- Self-grounding latch system with double seal
- Seamless foam-in-place gasket
- Stainless steel quarter-turn latches furnished with flush slotted insert
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Bonding provision on door, grounding stud on body
- Enclosures with 'A' dimension of 16.00 in. (406mm) or greater utilize NEMA style panels, models with 'A' dimension less than 16.00 in. (406mm) utilize Junction Box style panels
- Furnished hardware kit consists of panel mounting fasteners grounding hardware and sealing washers for wall-mounting hole
- Mounting holes in back of body for direct mounting optional stand-off kit or mounting bracket kit
