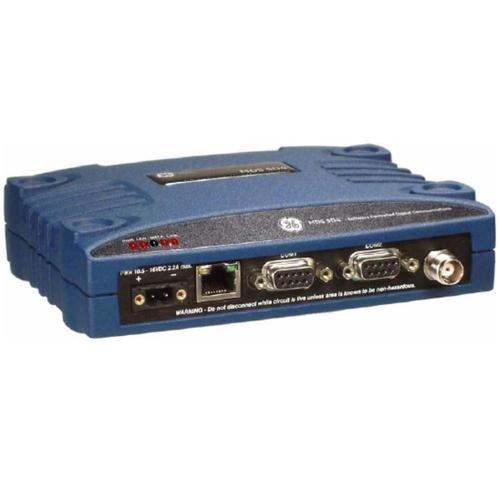

MDS Radio SD9-ES-H-D Licensed SD9-D Radio (850-860)(926-936) MHz TX High Serial/Ethernet (Din Rail Mount)
MDS SD09-MDHESNADNN MDS SD9 Radio ES H Band (850-860)(926-936) MHz TX High (Din Rail Mount) SD09-MDHESNADNN Licensed Managed Serial Licensed Radio. 1 Ethernet data port and 2 Serial data ports with 1 port 9710 Emulation (Ethernet AES-128 Encryption) 5 watt, 10v-30vdc with data rates to 19.2 Kbps at max range of 50 miles, sensitivity of -112 at 1x10-6 BER. with 1 Active Ethernet Port and 2 Active Serial Ports. High speed, up to 65 Kbps in 50 KHz channel. Programmable RS232/485.
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
This product is now obsolete from the manufacturer
Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.
MDS SD9 ES H Band (850-860)(926-936) MHz TX High (Din Rail Mount) SD09-MDHESNADNN Licensed Managed Serial Licensed Radio. 1 Ethernet data port and 2 Serial data ports with 1 port 9710 Emulation (Ethernet AES-128 Encryption) 5 watt, 10v-30vdc with data rates to 19.2 Kbps at max range of 50 miles, sensitivity of -112 at 1x10-6 BER. with 1 Active Ethernet Port and 2 Active Serial Ports. High speed, up to 65 Kbps in 50 KHz channel. Programmable RS232/485. Includes authorization for remote management access, AES 128 Encryption, and VRC. Defaults to 9710 emulation mode. Supports packet and transparent modes and IP/Ethernet bridging. Temperature range of -140 to 158 degrees fahrenheit. With bands of A 820-870 MHz TX High, B 928-960 MHz TX High, C 450-512 MHz TX High, D (850-860)(926-936) MHz TX High. The MDS SD Series are industrial wireless solutions that provide long distance communications over licensed radio bands, allowing users to interface to both Ethernet and serial devices such PLCs, RTUs and meters with host monitoring and control systems. The SD’s Media Access Control (MAC) is optimized to reduce Ethernet overhead and preserve bandwidth for higher usable data speed. The IP Payload feature removes unneeded Ethernet frames to shrink messages and improve throughput. MDS SD Series radios can be directly added to existing MDS x710 and x790 systems, providing both "drop-in" compatibility for expansions and replacements, and adding Ethernet support.
| Specifications | |
| Radio 2 Type | None |
| Radio Capability | Point to Multipoint |
| Radio Voltage | 12 VDC |
| Radio Voltage | 24 VDC |
| Radio Temperature Range Low | -40f |
| Radio Temperature Range High | 158f |
| Radio Encryption | AES-128 |
| Radio Housing | Enclosed |
| Radio UL Approval | UL Approved |
| Radio Data Protocol | Serial RS232 |
| Radio Data Interface | DB9 |
| Radio Data Protocol | Ethernet |
| Radio Range | 50 miles |
| Radio Carrier Power | 5 watt |
| Radio Data Rate | 19.2 Kbps |
| Radio Sensitivity | -112 |
| Radio RF Connector | TNC Female |
| Radio Redundancy | Non-Redundant 1 Radio |
| Radio Serial Ports | 2 Serial Ports |
| Radio Ethernet Ports | 1 Ethernet Port |
| Radio Data Interface | RJ45 |
| Radio Mounting | Din Rail Mount |
| Radio Battery Backup | No Battery Backup |
| Radio Frequency Range | (850-860)(926-936) MHz TX High |
| Radio Frequency Band | H Band (850-860)(926-936) MHz TX High |
| Radio Type | 900 MHz Serial Licensed |
| Radio Antenna Ports | 1 Antenna Port |
| Manufacturer | MDS |
| Line | SD9 |
| Component | Radio |
