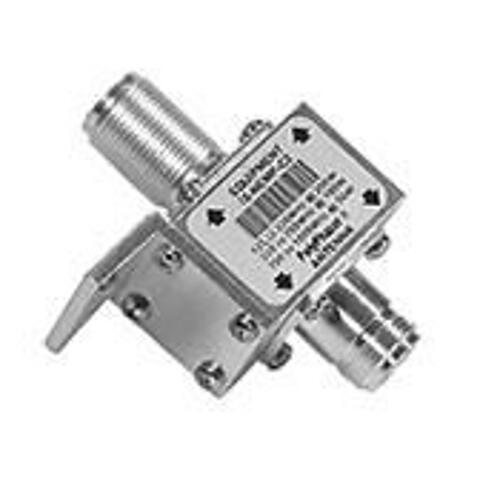

Polyphaser IS-B50LN-C2 Coax Lightning Protector 125 MHz-1 GHz
Normally In Stock
Code: 234
Polyphaser IS-B50LN-C2 Gas Tube Coax Protector 125-1000 MHz. DC Block Single Transmitter Coax Lightning Protection NF-NF(Surge side/Protected Side) Bulkhead Mount.
Condition: New
Usually ships Same Day or Next Day$136.76
Sale Price
$113.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Polyphaser IS-B50LN-C2 125 MHz-1 GHz Broadband DC Block Single Transmitter Coax Lightning Protection. Non-Weatherized Max Surge Rate 50kA, 375 W @125 MHz- 50 W @ 1 GHz. Turn On Voltage 600 Vdc +/-7 20 %, VSWR ≤1.1:1 125 MHz to 1 GHz, Insertion Loss ≤ 0.1 dB.
Specifications
Technology (RF Protection)
Gas Tube (Avg 10 Yr. Life)
Connector Protected Side (RF Protection)
N Female
Connector Surge Side (RF Protection)
N Female
DC Handling (RF Protection)
DC Block
Direction Connection (RF Protection)
One Direction
Max Surge Rate (RF Protection)
50Ka
Max Watts (RF Protection)
375 Watts
Weatherization (RF Protection)
Non-Weatherized
Max Insertion Loss (RF Protection)
≤0.1 Db
VSWR (RF Protection)
≤1.1:1
Frequency (RF Protection)
125 Mhz-1 Ghz
Manufacturer
Polyphaser
Frequency Max (RF Protection)
1 Ghz
Component
Lightning Protector
Features
PolyPhaser coaxial RF surge protector (also known as lightning surge protector, lightning surge arrestor or suppressor) IS-B50LN-C2 is in-stock and will ship same-day as purchased.
This radio frequency surge protector / lightning surge arrestor helps protect your equipment from electromagnetic pulse (EMP) or power surges that are commonly caused by lightning or other strong electrical changes.
Our radio frequency coaxial surge protector product is commonly used for radio and antenna installations where part or all system equipment is outdoors to protect sensitive equipment and is designed to pass 10 MHz to 1 GHz while suppressing DC surge.While this radio frequency lightning surge suppressor operates in a range of frequencies from 10MHz to 1GHz, it is supporting a power handling maximum of 1.5 kWatts.RF surge protector IS-B50LN-C2 from PolyPhaser incorporates blocking cap and gas tube technology to provide protection for equipment at up to the max. power of 1.5kW.Our coax surge protection device for RF is manufactured with a type N bulkhead connection in and a type N bulkhead out.IS-B50LN-C2 is constructed with a female gender for the input and female for the output.
This F/F N type to type N surge protecting component for RF has a let-through energy of 120uJ.
Our type N bulkhead coaxial lightning surge protector is RoHS compliant.PolyPhaser provides one of the largest varieties of RF / microwave surge protector devices available for same-day shipping.
Our facilities ship type N F/F bulkhead coaxial RF surge protector, 10MHz - 1GHz, DC block, 1.5kW, 120uJ, 20kA, blocking cap, hole mount as well as the rest of our surge protection product line from in-stock inventory the same day as purchased.
We support our customers with a sense of urgency while providing innovative lightning and surge protection solutions that ensure reliable operation of critical systems for a connected world.
