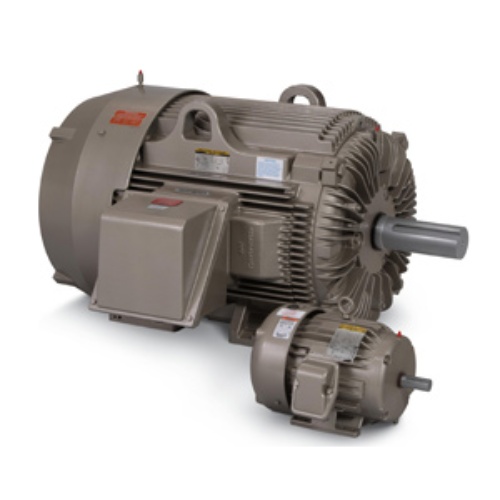

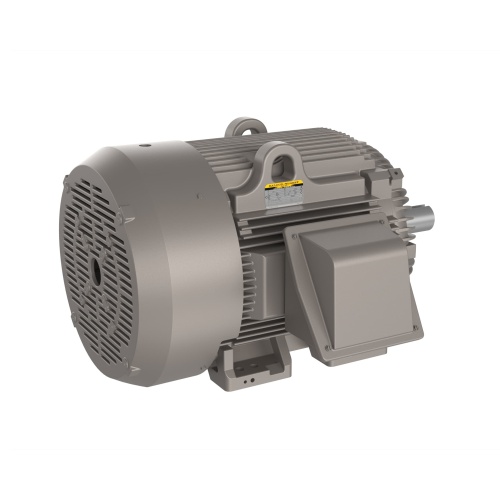

Baldor ECR9508TR - TEFC, 3 Phase, 50 HP , 60 Hz

Baldor ECR9508TR - Baldor-Reliance® severe duty motors are specifically engineered to withstand harsh conditions, safeguarding against contamination, moisture, vibration, and corrosion. These motors are equipped with Super-E® premium efficient electrical designs, ensuring they can handle demanding duty cycles while delivering high starting and peak torques across wide speed ranges. With heavy-duty cast iron construction and enhanced ingress protection, these motors provide a safe, reliable, and long operating life, effectively reducing energy consumption even in the most challenging applications. Additionally, their corrosion-resistant epoxy finish adds further durability to the motors, making them an ideal choice for tough environments.

Specifications
Motor Enclosure Type	Totally Enclosed Fan Cooled
Motor Voltage Phases	3 Phase
Motor Insulation Class	Class F Insulation
Motor Horsepower	50 HP
Motor Frame Model	404T
Motor Frequency	60 Hz
Motor Duty Cycle	Continuous Duty
Motor Voltage	230 Volt
Motor Voltage	460 Volt
Motor NEMA Design	NEMA Design A
Motor RPM's	900 RPM
Manufacturer	Baldor-Reliance
Motor Construction	Iron
Motor Amperage (Full Load)	79.4 Amp
