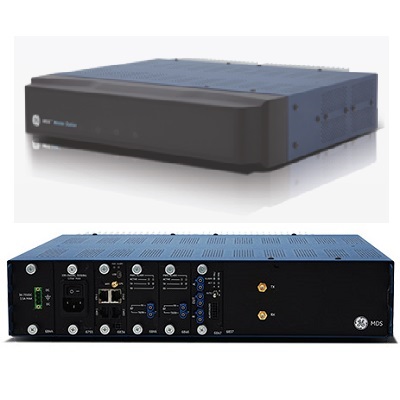

MDS SD Master Station 928-960 Narrow (Duplexer 31 MHz, RX 928.0-929.0 TX 959.0-960.0) Redundant 125 VDC Primary 125 VDC Secondary

MDS SD Master Station 928-960 Narrow Simplex Redundant Protected 125 VDC Primary Power and 125 VDC Secondary Power with redundancy. Serial Master Station with serial and ethernet data ports. MPRS9CRD9D1S2N44F1SNN is compatible with SD9 and 9710 radios with data rates up to 19.2 Kbps. Max range of 50 miles and sensitivity of -112. Temperature range of -22-140 degrees fahrenheit, power consumption of 5 A or 60 watts. Excellent performance in the face of interference or difficult signal paths. Network management software simplifies maintenance tasks, reduces network infrastructure management costs, and provides a non-intrusive means of maintenance and link monitoring. Redundancy options for protected 1+1 warm stanby configuration for reliable continuous use. Full duplex, half duplex and simplex modes.

Specifications
Radio Capability	Point to Multipoint
Radio Housing	Enclosed
Radio Encryption	None
Radio UL Approval	UL Approved
Radio Data Protocol	Serial RS232
Radio Data Protocol	Ethernet
Radio Temperature Range High	140f
Radio Carrier Power	5 watt
Radio RF Connector	N Female
Radio Temperature Range Low	-22f
Radio Data Rate	19.2 Kbps
Radio Sensitivity	-112
Radio Serial Ports	2 Serial Ports
Radio Ethernet Ports	1 Ethernet Port
Radio Data Interface	RJ45
Radio Redundancy	Redundant 2 Radios
Radio Voltage	125 VDC
Radio Mounting	Standard Mount
Radio Battery Backup	No Battery Backup
Radio Frequency Range	928-960 MHz(Narrow)
Radio Frequency Band	B Band 928-960 Narrow MHz
2nd Radio Frequency Band	B Band 928-960 Narrow MHz
2nd Radio Frequency Range	928-960 Narrow MHz
Radio Type	900 MHz Serial Licensed
Radio 2 Type	900 MHz Serial Licensed
Radio Antenna Ports	1 Antenna Port
Manufacturer	MDS
2nd Radio Voltage	125 VDC
Line	SD9 Master Station
Component	Radio
