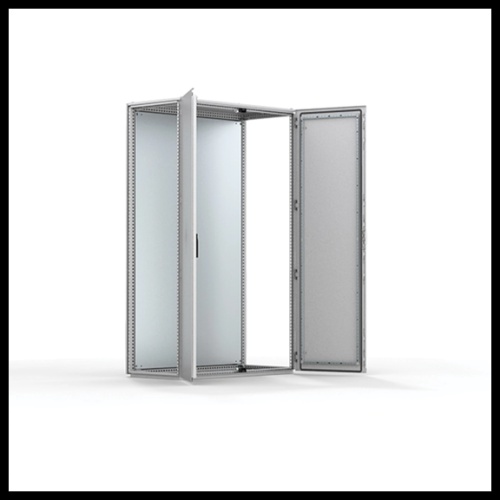

Hoffman MCD20164R5 Modular Double Door, MCD, 2000x1600x400mm, Light Gray, Mild Steel

Hoffman MCD20164R5 The mild steel double door modular floor standing enclosure range, MCD, is ideal for installation in confined spaces where a single door, when opened, would take up too much space in front of the enclosure. The doors' loading capacity also increases as it is divided over two doors. With a IP 55 protection degree, components inside the enclosure are well protected and makes it well suited for many different applications. Mild steel side panels, SPM, need to be ordered separately, to close individual enclosures and enclosure assembly's, to ensure the stated protection degree is achieved. Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660; including integrated external hole patternDoor: Mounted with four hinges including door frame with 25 mm hole patternDoor: Doors cannot be reversed and separate doors required for left hand door locking; order separatelyRear panel: Fitted by M6 torx screws and standard facilities for rear doors mountingRear panel: Split rear panels in 1600 mm wide enclosuresSupplied as an accessoryRemovable roof panelLock: espagnolette 4-point locking system in the main door and 2-point locking system in the secondary door with standard double-bit lock with 3 mm insertBottom plate: Consists of three or four (D>600) piecesMounting plate: Double folded and slides into position; adjustable in depth by steps of 25 mm, with the MPD02 accessoryEarthing/Grounding: All panels are earthed/grounded through their fittings and equipped with a separate earthing studDelivery: Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame (not included for PER5 version); for enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth; delivery also includes earthing bolts

Specifications
Door-Cover Finish	Steel
Door-Cover-Window Composition	Steel
Manufacturer	Hoffman
Door-Cover For Frame Height	78.74"
Component	Mudular Door
Door-Cover Type	NEMA Type 12; NEMA Type 13; IP55; IK10
Door-Cover For Frame Width	62.99"
