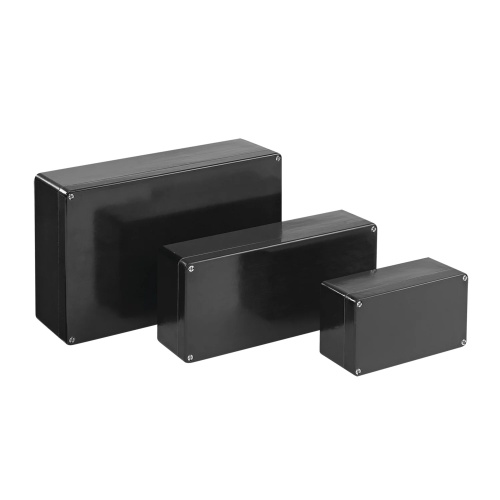

Hoffman EXE26016090 Hazardous Location Enclosure Fiberglass
Hoffman EXE26016090 ZONEX Enclosure 10" H x 6" W x 3.54" D, Nema 4x Non-Metallic Fiberglass, Stainless Steel Screws on cover with no hinges. Optional Panel. (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $292.60
Sale Price:
$203.78
Hoffman EXE26016090 ZONEX Non-Metallic Enclosure. This convenient Hoffman Fiberglass ZONEX enclosure is certified to meet ATEX Directive 94/9/EC as well as IECEx standards for increased safety in housing electrical components in Zone 1 and Zone 2 applications. Reusable durable internal M4 or M6 stainless steel inserts for Din and Panel mounting. Optional panels sold seperately.
| Specifications | |
| Enclosure Environment Rating | Outdoor-Indoor |
| Enclosure Composition | Fiberglass |
| Enclosure Hazardous Classification | ATEX Directive 94-9-EC Zone 2 |
| Enclosure Hazardous Classification | ATEX Directive 94-9-EC Zone 1 |
| Enclosure Depth | 3.54" |
| Enclosure NEMA Rating | NEMA Type 4 |
| Enclosure NEMA Rating | NEMA Type 4X |
| Enclosure Width | 6" |
| Line | Zonex |
| Manufacturer | Hoffman |
| Enclosure Door Type | Solid |
| Enclosure Mount Type | Wall Mount |
| Enclosure Height | 10" |
| Enclosure Latch Type | Screw |
| Component | Hazardous Location Enclosure |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 12 |
- Covered mounting screw provisions outside of gasketed area, sized M4 (#8) or M6 (¼-in.)
- Retained, continuous, high-temperature silicon gasket within a labyrinth seal between cover and body
- Durable and reusable, internal M4 or M6 stainless steel inserts for DIN- and Panel-mounting
- Mounting location dimensions are molded into the back side of the enclosure
- Cover includes recessed, retained, combination head (Straight blade, Phillips and Torx drive) M4 or M6 stainless steel Type 316 screws
- Compression-molded, high-impact strength, polyester body and cover
- Panel mounting screws included, M4 or M6
- Optional panels are pre-plated steel, 1.5mm (16 ga.) thick, or 2mm composite
- Increased Safety: Ex e applications
- High-impact strength as well as high temperature-rated
- Compression-molded fiberglass with added agents to address static charge build-up
