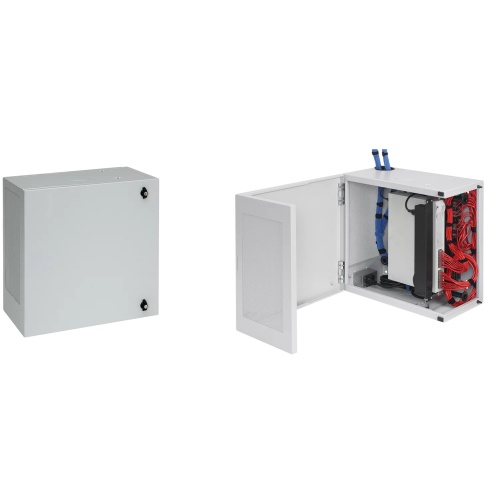

Hoffman DBL362412G 36"x24"x13.0" L-Box Network Cabinet Type 1

Hoffman DBL362412G 36"x24"x13.0" Wall Mount L-Box Network Cabinet Type 1 (DOES NOT INCLUDE BACK PANEL)

Normally In Stock! Order now!

Condition: New

Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)

Price: $1358.50

Sale Price: $1128.60

Hoffman DBL362412G 36"x24"x13.0" L-Box Network Cabinet Type 1

Specifications
Enclosure knockouts	Includes Knockouts
Enclosure Hinge Type	Standard Hinge
Enclosure Latch Type	Quarter Turn
Enclosure Interior Color	Gray
Enclosure Depth	13"
Enclosure Lock Type	Keylocking
Rack Units	6
Enclosure Height	36"
Manufacturer	Hoffman
Enclosure Environment Rating	Indoor
Enclosure Door Type	Solid
Enclosure Mount Type	Wall Mount
Enclosure Width	24"
Enclosure Composition	Steel
Component	Network Enclosure
Enclosure Number of Doors	1 Door
Enclosure NEMA Rating	NEMA Type 1
Enclosure Type	L-Box Network Cabinet

Rack angles on 36-inch (914-mm) models can be positioned either at the top or the bottom of the cabinet
Quarter-turn latches with key lock
One set of fixed rack angles is included on 24- and 36-inch (610- and 914-mm) tall models and two on 48-inch (1219-mm) tall models
36- and 48-inch (914- and 1219-mm) tall models have space for patch panel or shelf brackets
120-degree door opening for maximum eqiupment access
Spring-loaded, self-retained hinge pins allow door removal
Knockouts for 4-inch (102-mm) fan on top and bottom of cabinet
Keyhole mounting slots spaced 16.00 inch (406 mm) on center for easy cabinet mounting
Multiple cable tie-down points on back of cabinet
Wiring knockouts (7/8 inch, 1-3/8 inch, and 3 inch) on top and bottom of cabinet & two 3-inch cable entry knockouts on back
