Iboco Wire Duct

filter_list

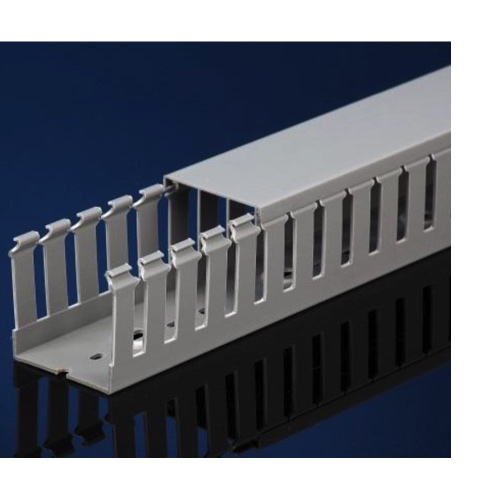

Iboco wire duct is a product designed to help manage and organize cables and wires in various settings, such as industrial control panels and electrical enclosures. Made from rigid PVC material, Iboco wire ducts are known for their durability and robustness, providing reliable solutions for wiring installations.

These wire ducts usually come with slotted designs, which feature break-away fingers, or "duct fingers," that can be snapped off easily to accommodate a larger number of cables or to create customized openings for cable routing. This feature makes it particularly versatile for different wiring needs and allows for easy installation.

The slots in Iboco wire ducts not only provide a high degree of flexibility when routing cables but also give you better access to the wires once installed. This accessibility is crucial for maintenance and troubleshooting, as you don't have to disassemble the entire setup to make changes or fixes. Replacement covers are often available to keep your wiring secure and protected from contaminants like dust and debris.

Products

Products Per Page: Sort By:
Iboco T12222G Wire Duct Gray Wide Finger 2.25"W x 2.25"H
Iboco T12222G Wire Duct Gray Wide Finger 2.25"W x 2.25"H
$64.94
Iboco T12222G Gray Wire Duct 6' Length (Wide Finger) with Cover (2 1/4 wide X 2 1/4 deep),6' lengths. Made of rigid PVC with a UL 94V-0 flammability rating. Flush cover designed to hold 10% more wires. Standard mounting holes and wide finger design make it more rigid and larger slot width.
Iboco T12230G Wire Duct Gray Wide Finger 2.25"W x 3"H
Iboco T12230G Wire Duct Gray Wide Finger 2.25"W x 3"H
$80.06
Iboco T12230G Gray Wire Duct 6' Length (Wide Finger) with Cover (2 1/4 wide X 3" deep),6' lengths. Made of rigid PVC with a UL 94V-0 flammability rating. Flush cover designed to hold 10% more wires. Standard mounting holes and wide finger design make it more rigid and larger slot width.
Iboco T11010W Wire Duct White Wide Finger 1"W x 1"H
Iboco T11010W Wire Duct White Wide Finger 1"W x 1"H
$40.90
Iboco T11010W White Wire Duct 6' Length (Wide Finger) with Cover (1" wide X 1" deep),6' lengths. Made of rigid PVC with a UL 94V-0 flammability rating. Flush cover designed to hold 10% more wires. Standard mounting holes and wide finger design make it more rigid and larger slot width.
Iboco T1E1515W Wire Duct White Narrow Finger 1.5"W x 1.5"H
Iboco T1E1515W Wire Duct White Narrow Finger 1.5"W x 1.5"H
$56.59
Iboco T1E1515W White Wire Duct 6' Length with Cover (1 1/2" wide X 1 1/2" deep),6' lengths. Made of rigid PVC with a UL 94V-0 flammability rating. Flush cover designed to hold 10% more wires. Standard mounting holes and wide finger design make it more rigid and larger slot width.
Iboco T1E1040G Gray Duct White Narrow Finger 1"W x 4"H
Iboco T1E1040G Gray Duct White Narrow Finger 1"W x 4"H
$79.92
Iboco T1E1040G Gray Wire Duct 6' Length with Cover (1" wide X 4" deep),6' lengths. Made of rigid PVC with a UL 94V-0 flammability rating. Flush cover designed to hold 10% more wires. Standard mounting holes and wide finger design make it more rigid and larger slot width.
Iboco T12230W Wire Duct White Wide Finger 2.25"W x 3"H
Iboco T12230W Wire Duct White Wide Finger 2.25"W x 3"H
$80.06
Iboco T12230W White Wire Duct 6' Length (Wide Finger) with Cover (2 1/4 wide X 3" deep),6' lengths. Made of rigid PVC with a UL 94V-0 flammability rating. Flush cover designed to hold 10% more wires. Standard mounting holes and wide finger design make it more rigid and larger slot width.
Iboco T12222W Wire Duct White Wide Finger 2.25"W x 2.25"H
Iboco T12222W Wire Duct White Wide Finger 2.25"W x 2.25"H
$64.94
Iboco T12222W White Wire Duct 6' Length (Wide Finger) with Cover (2 1/4 wide X 2 1/4 deep),6' lengths. Made of rigid PVC with a UL 94V-0 flammability rating. Flush cover designed to hold 10% more wires. Standard mounting holes and wide finger design make it more rigid and larger slot width.
Iboco T11530W Wire Duct White Wide Finger 1.5"W x 3"H
Iboco T11530W Wire Duct White Wide Finger 1.5"W x 3"H
$74.74
Iboco T11530W White Wire Duct 6' Length (Wide Finger) with Cover (1 1/2" wide X 3" deep),6' lengths. Made of rigid PVC with a UL 94V-0 flammability rating. Flush cover designed to hold 10% more wires. Standard mounting holes and wide finger design make it more rigid and larger slot width.
Iboco T11530G Wire Duct Gray Wide Finger 14"W x 2.25"H
Iboco T11530G Wire Duct Gray Wide Finger 14"W x 2.25"H
$74.74
Iboco T11530G Gray Wire Duct 6' Length (Wide Finger) with Cover (1" wide X 2 1/4" deep),6' lengths. Made of rigid PVC with a UL 94V-0 flammability rating. Flush cover designed to hold 10% more wires. Standard mounting holes and wide finger design make it more rigid and larger slot width.
Iboco T11010G Wire Duct Gray Wide Finger 1"W x 1"H
Iboco T11010G Wire Duct Gray Wide Finger 1"W x 1"H
$40.90
Iboco T11010G Gray Wire Duct 6' Length (Wide Finger) with Cover (1" wide X 1" deep),6' lengths. Made of rigid PVC with a UL 94V-0 flammability rating. Flush cover designed to hold 10% more wires. Standard mounting holes and wide finger design make it more rigid and larger slot width.
Iboco T1E4040W Wire Duct White Narrow Finger 4"W x 4"H
Iboco T1E4040W Wire Duct White Narrow Finger 4"W x 4"H
$126.43
Iboco T1E4040W White Wire Duct 6' Length with Cover (4" wide X 4" deep),6' lengths. Made of rigid PVC with a UL 94V-0 flammability rating. Flush cover designed to hold 10% more wires. Standard mounting holes and wide finger design make it more rigid and larger slot width.
Iboco T1E3040W Wire Duct White Narrow Finger 3"W x 4"H
Iboco T1E3040W Wire Duct White Narrow Finger 3"W x 4"H
$110.30
Iboco T1E3040W White Wire Duct 6' Length with Cover (3" wide X 4" deep),6' lengths. Made of rigid PVC with a UL 94V-0 flammability rating. Flush cover designed to hold 10% more wires. Standard mounting holes and wide finger design make it more rigid and larger slot width.

More Information about Iboco Wire Ducts

Rounded edges in the design of these ducts help to protect the cables from damage due to friction or pulling forces. These design elements aim to prolong the life of both the cables and the duct system itself.

Iboco wire ducts are often used in applications where electrical cables need to be routed in a secure and organized manner, like in control panels or within electrical enclosures. By keeping the wires organized, these ducts also contribute to easier and safer troubleshooting, modifications, and overall maintenance.

They are generally available in a variety of sizes, catering to different wire densities and physical space limitations, making them a go-to product for electrical professionals seeking quality and flexibility in cable management solutions.



What is DIN Rail and Wire Duct for Industrial Panels

DIN rail is a mounting system used to secure electrical components to industrial control panels. In order to secure electrical components to DIN rail, the components must have a DIN rail mount. The component attaches to the DIN rail by pushing down on one side and clipping it into the DIN rail. To remove the component, a precision screwdriver is used to put in a slot that's located on the mount, lifting up, and the component pops off.

Wire ducts organize wires and cables in tight spaces while providing protection and a neat appearance. Wire ducting can be installed all the way around and throughout a control panel. It is available in many different sizes and colors for different types of applications.
