Hoffman COMPACT Series 4 Pendant Arm System

HMI enclosures are designed specifically for the wide range of Human Machine Interface applications found in industrial settings. It is important to have customization options like removable front plates that allow for easy installation of HMI components, optional door panels that can be mounted anywhere and cutout options where needed. Some enclosures are designed to enclose, protect and suspend lightweight HMI devices. HMI enclosures should always be rated to protect sensitive systems from the sometimes harsh environments found in industrial settings. This would include protection against moisture, chemicals and dirt, as well as, temperature variations.

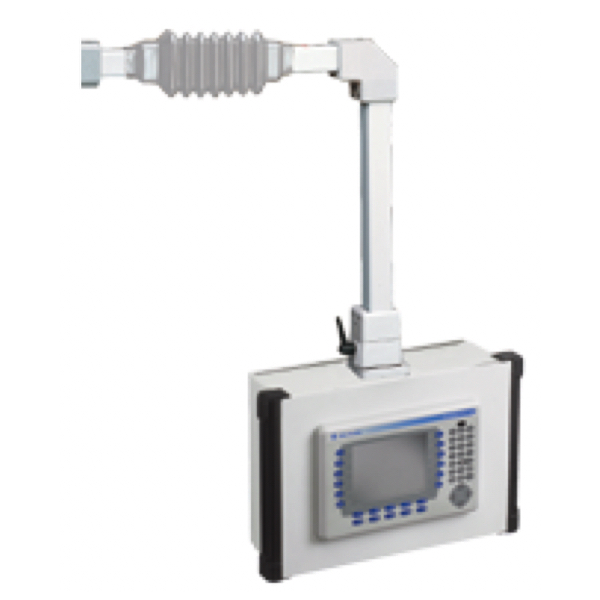

Hoffman COMPACT Series 4 system 80 pendant arms are designed to accommodate heavier loads, up to 337 pounds at 3.3 feet. The heavy duty system allows users to move controls into and out of position and is recommended for use with CONCEPT HMI and PROLINE sloped-front enclosures.

Hoffman CONCEPT HMI landscape-oriented steel enclosures are ideal for applications that utilize flat-screens, pushbuttons and other similar devices. These enclosures are made of light gray, 14 gauge steel and have a range of customization options. The enclosures have a predrilled hole in the top for pendant arm mounting and be can mounted on a pedestal when inverted. The removable front plate allows for easy installation of HMI components and the enclosure accommodates cutouts anywhere they are needed. Comfort grip handles extend the length of the profile and a hinged rear door has a single-point latch.

Hoffman PROLINE slope-front HMI enclosures have a 5 degree slope and are ideal for monitors and keyboards. The modular design is adaptable for nearly any application. There are two styles of sloped-front enclosures: one with a full-front opening and the other with an accessory opening.

Sort By:
$174.20
Hoffman CCS568AA30LG Compact Series 4 Angle Adapter Plate
$165.10
Hoffman CCS568AA15LG Compact Series 4 Angle Adapter Plate
$1362.40
Hoffman CCS8PBLG COMPACT Pendant Arm Series 4 Pedestal Base for system 80. Cast aluminum one-piece heavyduty construction with RAL 7035 light-gray polyester powder paint finish. Includes all hardware for attaching tubes
$841.10
Hoffman CCS8BBLG COMPACT Pendant Arm Series 4 Base Bracket for system 80. 7" base. For vertical-tube mounting or to mount tube to floor
$1865.50
Hoffman CCS8STBLG COMPACT HMI Series 4 System 80 Swivel Tilt Mount
$291.20
Hoffman CCS814RL COMPACT HMI Series 4 System 80 Rotation Limiter
$1588.60
Hoffman CCS8FECLG COMPACT Pendant Arm Series 4 Flange Elbow Coupling for system 80. Coupling mounts to enclosure, enabling enclosure to be rotated 300 degrees. Enclosure can be locked in position. Removable access plates.
$1020.50
Hoffman CCS8FCLG COMPACT Pendant Arm Series 4 Flange Coupling for system 80. Flange Coupling mounts to enclosure, enabling enclosure to be rotated 300 degrees. Enclosure can be locked in position. Safety stop and maintenance-free bearing.
$834.60
Hoffman CCS8ELLG COMPACT Pendant Arm Series 4 Elbow for system 80. Removable access plate. Setscrews and gaskets are included.
$1948.70
Hoffman CCS8IJRLG COMPACT Pendant Arm Series 4 Intermediate Joint for system 80. Mounts to pendant tube. Swivel range is approximately 180 degrees. Setscrews and bellows with zipper are included.
$695.50
Hoffman CCS8WFLG COMPACT Pendant Arm Series 4 Wall Flange for system 80. 7" base. Wall Flange expands mounting options to include wall-mount as well as horizontal tube applications
$2392.00
Hoffman CCS8WJCRLG COMPACT HMI Series 4 System 80 Wall Joint
$1892.80
Hoffman CCS8WJRLG COMPACT HMI Series 4 System 80 Wall Joint
$2467.40
Hoffman CCS8SJLG COMPACT Pendant Arm Series 4 Set -UP Joint for system 80. 7" square base. Mounts equipment to horizontal surface. Permits pendant arm to be rotated or turned 306 degrees.
$793.00
Hoffman CCS8T20 COMPACT Pendant Arm Series 4 Tubes for system 80. 3.1" x 3.1" square tubes 78" long are cold-formed, hollow, welded steel.
$510.90
Hoffman CCS8T10 COMPACT Pendant Arm Series 4 Tubes for system 80. 3.1" x 3.1" square tubes 39" long are cold-formed, hollow, welded steel.
$360.10
Hoffman CCS8T5 COMPACT Pendant Arm Series 4 Tubes for system 80. 3.1" x 3.1" square tubes 19.5" long are cold-formed, hollow, welded steel.
