Hoffman CS480 Pendant Arm System

HMI enclosures are designed specifically for the wide range of Human Machine Interface applications found in industrial settings. It is important to have customization options like removable front plates that allow for easy installation of HMI components, optional door panels that can be mounted anywhere and cutout options where needed. Some enclosures are designed to enclose, protect and suspend lightweight HMI devices. HMI enclosures should always be rated to protect sensitive systems from the sometimes harsh environments found in industrial settings. This would include protection against moisture, chemicals and dirt, as well as, temperature variations.

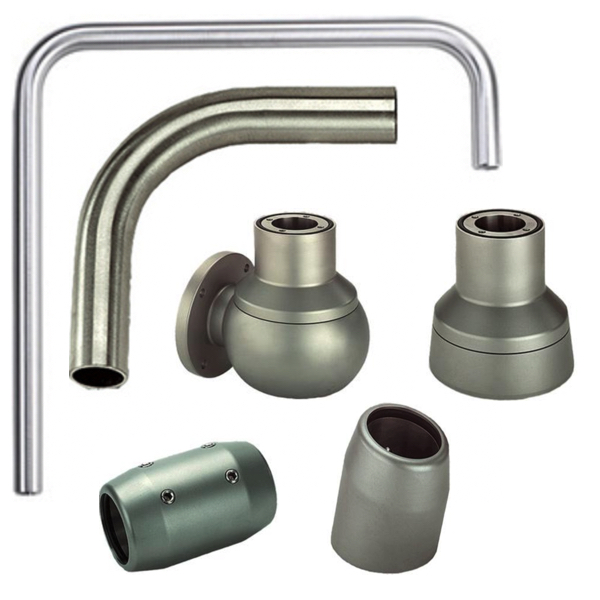

Hoffman CS480 stainless steel pendant arm system is used to suspend process and control equipment for easy cleaning and wash down. The system’s load rating at 3.3 feet is 89.6 pounds. The CS480 system has a high degree of design flexibility and is recommended for use with the stainless steel HMI enclosures with CS480 pendant cutout.

Hoffman stainless steel HMI enclosures are ideal for use in the pharmaceutical and food industries. The Type 304 stainless steel enclosures are corrosion resistant for easy cleaning and wash down. A pre-drilled hole allows for mounting to various support arm systems from a top or bottom position. Hoffman stainless steel HMI enclosures can be used with the CS480 and Compact Series 2 pendant arm systems, Syspend 180-Max and Syspend 281-Max suspension systems.

Sort By:
$3913.00
Hoffman CCSS48WJRV Wall Bracket with vertical socket for 90 degree attachment to vertical surfaces. Cover to facilitate wiring. Type 304 polished stainless steel finish. Includes gaskets. Wall-mounting fasteners not included.
$4680.00
Hoffman CCSS48WJC CS480 HMI Swivel Wall Coupling
$4826.90
Hoffman CCSS48WJV Wall Joint with vertical socket for mounting to vertical surfaces. Cover to facilitate wiring. Turns through 340 degrees with rotation limiter. Preset torque. Maintenance-free bearings. Type 304 polished stainless steel finish.
$2388.10
Hoffman CCSS48BBCRI Swivel Base Internal Bracket Coupling for directly mounting enclosures to a machine or the floor. Turns through 340 degrees with rotation limiter. Preset torque. Maintenance-free bearings. Type 304 polished stainless steel finish.
$2499.90
Hoffman CCSS48BBCRE CS480 HMI Seivel Base Bracket Coupling
$1166.10
Hoffman CCSS48ACBB CS480 HMI Base Bracket Angle Coupling 15 Degree
$885.30
Hoffman CCSS48BB Base Bracket/Wall Flange Use as Base Bracket or Wall Flange to mount to vertical or horizontal surfaces. Type 304 polished stainless steel finish. Includes gaskets. Basemounting fasteners not provided.
$2541.50
Hoffman CCSS48BBRI CS480 HMI Swivel Base (Internal Attachment)
$2657.20
Hoffman CCSS48BBRE CS480 HMI Swivel Base (External Attachment)
$1002.30
Hoffman CCSS48AC15 Angle coupling for enclosures. Rigid flange coupling with 15-degree angle of inclination for attaching enclosures. Type 304 polished stainless steel finish. Includes gaskets and mounting hardware.
$1259.70
Hoffman Straight coupling for enclosure. Flange coupling for attaching enclosures. Turns through 340 degrees with rotation limiter. Preset torque. Maintenance-free bearings. Type 304 polished stainless steel finish. Includes gaskets and mounting hardware.
$806.00
Hoffman CCSS48CS CS480 System Coupling Sleeve The Shaped Pendant Tubes joins sections of tubing in the CS480 System. Type 304 polished stainless steel finish. Includes gaskets.
$3246.10
Hoffman CCSSTU802480 U-Shaped Stainless Steel Pendant Tube 31.5" x 9.45" x 31.5" U-Shaped Pendant Tubes are made of Type 304 stainless steel with an outer diameter of 48 mm (1.90 in.) and have a smooth finish.
$2346.50
Hoffman CCSSTU502450 U-Shaped Stainless Steel Pendant Tube 19" x 9.45" x 19" U-Shaped Pendant Tubes are made of Type 304 stainless steel with an outer diameter of 48 mm (1.90 in.) and have a smooth finish.
$1757.60
Hoffman CCSSTL10050 L-Shaped Stainless Steel Pendant Tube 19" x 39.37" L-Shaped Pendant Tubes are made of Type 304 stainless steel with an outer diameter of 48 mm (1.90 in.) and have a smooth finish.
$1437.80
Hoffman CCSSTL5024 CS480 HMI Stainless Steel L-Shaped Tubing
$1144.00
Hoffman CCSS48TLB50 Stainless Steel L-Shaped Tubing 10" x 19" has an outer diameter of 48.3 mm (1.90 in.) and is made from 3.6-mm wall thickness Type 304 polished stainless steel.
$913.90
Hoffman CCSS48TLB25 Stainless Steel L-Shaped Tubing 10" x 10" has an outer diameter of 48.3 mm (1.90 in.) and is made from 3.6-mm wall thickness Type 304 polished stainless steel.
$828.10
Hoffman CCSS48T150 Stainless Steel Straight Tubing 59" long has an outer diameter of 48.3 mm (1.90 in.) and is made from 3.6-mm wall thickness Type 304 polished stainless steel.
$692.90
Hoffman CCSS48T125 Stainless Steel Straight Tubing 49.21" long has an outer diameter of 48.3 mm (1.90 in.) and is made from 3.6-mm wall thickness Type 304 polished stainless steel.
$581.10
Hoffman CCSS48T100 Stainless Steel Straight Tubing 39.37" long has an outer diameter of 48.3 mm (1.90 in.) and is made from 3.6-mm wall thickness Type 304 polished stainless steel.
$443.30
Hoffman CCSS48T75 Stainless Steel Straight Tubing 39.37" long has an outer diameter of 48.3 mm (1.90 in.) and is made from 3.6-mm wall thickness Type 304 polished stainless steel.
$331.50
Hoffman CCSS48T50 Stainless Steel Straight Tubing 19" long has an outer diameter of 48.3 mm (1.90 in.) and is made from 3.6-mm wall thickness Type 304 polished stainless steel.
$224.90
Hoffman CCSS48T25 Stainless Steel Straight Tubing 10" long has an outer diameter of 48.3 mm (1.90 in.) and is made from 3.6-mm wall thickness Type 304 polished stainless steel.
