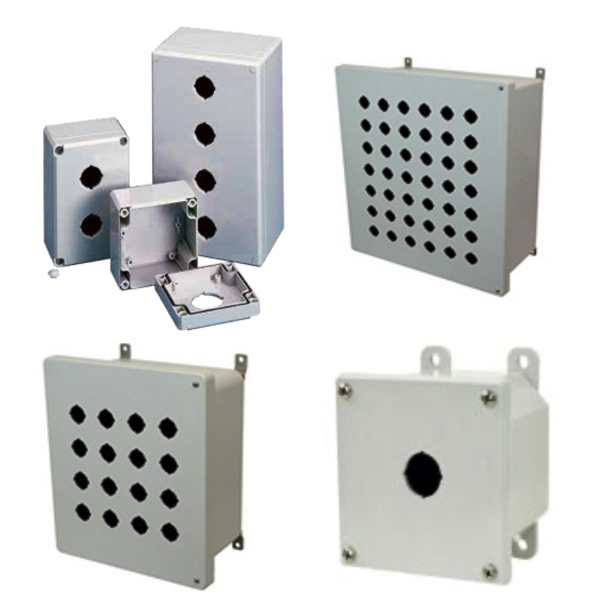

Plastic Push Button Enclosures

Plastic push button enclosures are protective cases or boxes that are designed to house push buttons, pilot lights, switches and other control components made from plastic materials. These enclosures are commonly used in industrial and commercial applications where control of machinery or other equipment is necessary.
Plastic push button enclosures are typically made from materials such as polycarbonate, ABS, or fiberglass-reinforced polyester to ensure they can withstand the harsh conditions of industrial environments. They are available in a range of sizes, shapes, and designs to accommodate different types and sizes of push buttons and switches.
A push button enclosure typically features a hinged or removable cover that provides easy access to the controls within. It may also feature mounting brackets or holes to secure the enclosure to a wall, panel, or other surface.
Products
FAQs
What is a B-Line series of push button enclosures?
The B-Line series of push button enclosures is a product line offered by Eaton Corporation.
Is an oil resistant gasket available on extra deep push button enclosures?
Whether an oil-resistant gasket is available on an extra deep push button enclosure would depend on the specific manufacturer and product line. However, it is common for push button enclosures to be designed with gaskets or seals that provide protection against various environmental hazards, including oil and other liquids.
What is the typical number of holes in a pushbutton enclosure?
The number of holes in a pushbutton enclosure can vary depending on the specific application and the control components being used. Generally, a pushbutton enclosure will have one or more holes that are sized to accommodate the push buttons or other control components being installed.
What is the typical conduit size in a pushbutton enclosure?
The conduit size in a pushbutton enclosure can vary depending on the specific application and the electrical requirements of the control components being used. In general, pushbutton enclosures are designed to accommodate a range of conduit sizes, typically ranging from 1/2 inch to 1 inch in diameter.
Enclosure Selection Basics
Electrical enclosures are cabinets that are designed to house electrical components. Their main function is to protect the components, as well as to protect the operators from electrical hazards. Enclosures are typically made of solid plastics, fiberglass and metal materials, such as carbon steel, stainless steel and aluminum.
One of the most important things to consider when selecting an electrical enclosure is the NEMA rating. NEMA stands for National Electrical Manufacturer Association. They have developed a rating system which determines the types of environments an electrical enclosure can be used in.
NEMA 1 and a NEMA 12 enclosures
Both of these enclosures are intended for indoor use only. They are both dust resistant. The NEMA 12 enclosure is rated for damp environments. The NEMA 1 is rated only for dry environments.
NEMA 4 and NEMA 4X enclosures
Both of these enclosures can be used indoors as well as outdoors. They are both dust resistant. They are also water resistant and corrosion resistant. NEMA 4X has an extra layer of corrosion resistance.
NEMA 7 enclosures
This is a more specific type of enclosure that is rated for use in hazardous environments. It is rated to contain an explosion within the enclosure and not cause any sort of external hazard.
Size
When selecting the size of an enclosure, it is important to consider the following: how much space will the electrical components occupy, how much space is needed around each component, is there enough room to run all of the wires and how much space is needed outside of the enclosure?
Temperature
When selecting an enclosure, it is important to consider both the ambient temperature and the temperature that is generated inside of the enclosure. When an enclosure is located outside in direct sunlight, that heat can be transferred inside the enclosure. Also, each component inside of the enclosure generates a certain amount of heat.
