Rittal Wire Duct

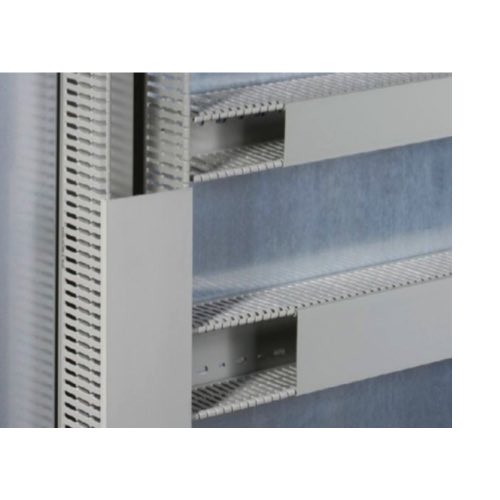

Rittal wire duct provides an efficient and organized solution for cable management in industrial, commercial, and automation environments. Designed to route and protect cables within control panels and enclosures, these ducts help maintain a clean and structured wiring system. Manufactured from durable materials, Rittal wire ducts offer resistance to environmental factors such as heat, dust, and mechanical stress, ensuring long-term reliability. Their well-engineered design allows for easy installation, cable access, and modifications, reducing maintenance time while improving overall system efficiency.
Available in various sizes and configurations, Rittal wire duct supports different wiring needs, from standard cable management to high-density applications. Slotted and solid wall designs provide flexibility for cable routing while preventing damage during installation and operation. These wire ducts are designed to integrate seamlessly with Rittal enclosures and other electrical components, offering a complete solution for organized and safe wiring. Some models feature enhanced ventilation to help dissipate heat, preventing cables from overheating and ensuring optimal performance for electrical systems.
4 Best Practices When Fabricating a Control Panel
Use a Larger Enclosure Whenever Possible
This allows room in the panel design to properly space all of the hardware and to install larger wire ducting. Panels that have ample space tend be me more organized, while panels that have everything crammed into a small space tend to be more difficult to work in and are often less organized.
Tap Holes Instead of Using Self-Tapping Screws
It is common for panel builders to use self-tapping screws to save time during the fabrication process. While it can save time, this type of fastener does not always provide the consistent, strong connection that may be needed for the mounted hardware. This is especially true when hardware may need to be removed at some point and then later reattached. Holes that have been tapped prior to hardware installation will offer a stronger, more consistent connection point that will last longer.
Ensure that Wire Ducting is Large Enough
It is very easy to undersize wire ducting when designing a panel. It is important to always plan for wire ducting to have extra room available once all wires have been run through it, including field wires.
When in Doubt, Label it
It is a very good practice to label wires in a control panel, but it is not always required to label the other types of hardware in the panel to meet code. It is important to understand that any operators that may access this panel at a later date may not understand what the hardware in the panel is intended for. To make the panel is as safe as possible, and to allow operators to function in the panel more efficiently, it is a good idea to label everything that may come into question.
