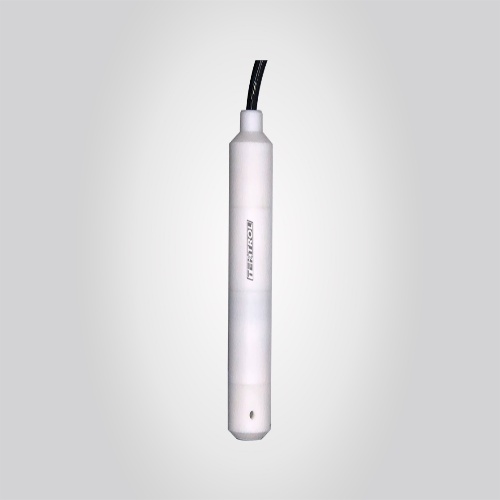

Tek-Trol 4800A-T-2-42-05-T7 - Tek-Sub 4800A PTFE Submersible Level Transmitter, 5.7 psig, ±0.5

Tek-Trol 4800A-T-2-42-05-T7 - The Tek-Sub 4800A PTFE Submersible Level Transmitter has been designed for continuous submersion in aggressive fluids. This submersible device uses a rugged ceramic pressure sensor encased in PTFE housing that provides excellent corrosion resistance in most fluids. It facilitates simple installation, easy cleaning and years of trouble-free service with almost no maintenance. The device guarantees stability and reliability in harsh environments.The Tek-Sub 4800A operates on 12-36 VDC power. Available outputs are 4-20 mA, 0.5-4.5 VDC or RS-485.

Specifications
Manufacturer	Tek-Trol
(Instrument-Sensor) Composition	304 stainless steel
Component	PTFE Submersible Level Transmitter
Line	Tek-Sub 4800A
(Instrument-Sensor) Span	5.7 psig
(Instrument-Sensor) Measurement Accuracy	0.600%
(Instrument-Sensor) Output Signal Range	4-20 mAmp
