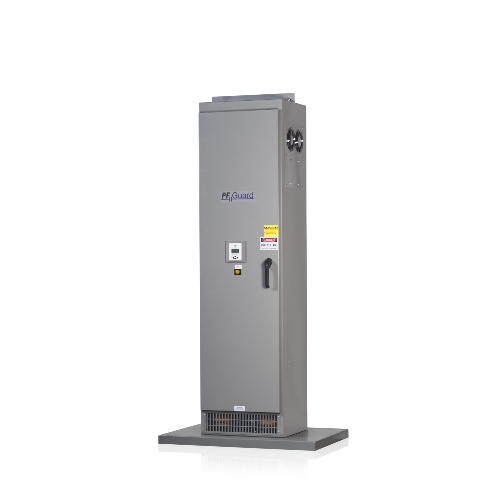

TCI PFCA0600AW2C041C PF Guard Capacitor Bank - 600 kVAR, 480 VAC, UL Type 12, Full & Half kVAR Steps

TCI PFCA0600AW2C041C - The PFGuard is an automatic capacitor bank, UL listed per 508A , Available in Type 1, Type 12, Optional Step Fuse monitor, Input protection options include, circuit breaker, fuse block, and fused disconnect switch, Input controller with up to 12 step outputs, Detuned cap bank allows for harmonic protection to the caps and hassle free operation, Available half and full step operation for finer PF control, 100kA SCCR with fusing. Built-in, detuned, anti-resonance reactor for extra layer of protection from harmonics and equipment failure. Typical Applications: Large Industrial, Heavy Manufacturing, Wood Processing, Steel/Paper Mills, Tire/Rubber, Refineries, Mining

Specifications
Manufacturer	TCI
Component	Capacitor Bank
Reactive Power	600 kVAR
Voltage Rating	480 VAC
Input Protection	Terminal Block
Series	PF Guard
Enclosure	UL Type 12
Number of Steps	7 Steps
kVAR Steps	100/50 kVAR Steps
