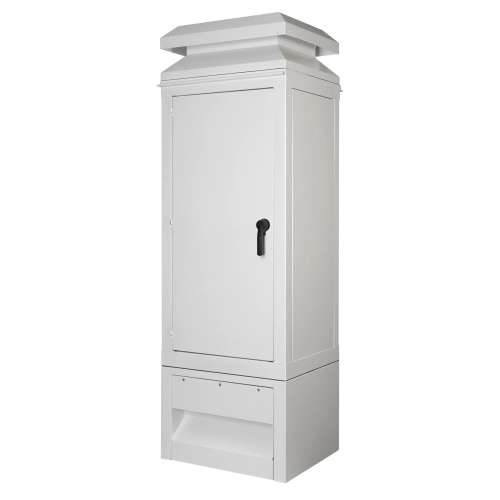

Hoffman WFHD3E726830 WEATHERFLO HD Commercial Enclosure
Hoffman WFHD3E726830 74" x 68.56" x 30" WEATHERFLO HD Type 3R Outdoor use White Steel Enclosure with intgrated cooling for VFD's. Hinged door with 3-point latch and padlocking handle. (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $6316.80
Sale Price:
$4399.20
Hoffman WFHD3E726830 WEATHERFLO HD Commercial Enclosure WEATHERFLO HD Steel Enclosure with hinged door with 3-point latch and padlocking handle designed to protect and cool 100-500 HP variable frequency drives with easy-to-change filter (not included). Factory installed integrated cooling solution for your VFD application needs. Painted white polyester powder finish with low solar absorption, Selectable bases and tops, Gangable where enclosures can be joined to one another, Grounding provisions on door and body, stay in place gasketed door, top and base. Optional impeller packages provide 840 actual CFM per impeller, Easy-to-install back panel with flexible installation methods,
| Specifications | |
| Component | Commercial Enclosure |
| Enclosure Environment Rating | Outdoor-Indoor |
| Enclosure Interior Color | White |
| Enclosure Lock Type | Padlocking |
| Enclosure Depth | 30" |
| Enclosure Height | 74" |
| Enclosure Width | 68.56" |
| Manufacturer | Hoffman |
| Enclosure Door Type | Solid |
| Enclosure Mount Type | Wall Mount |
| Enclosure Composition | Steel |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 3R |
| Enclosure Type | HD Enclosure |
- Gangable enclosures can be joined to one another
- Painted white polyester powder finish with low solar absorption
- Selectable bases and tops, designed to meet your specific needs
- Easy-to-change filter (not included)
- Easy-to-install back panel with flexible installation methods
- Optional impeller packages provide 840 actual CFM per impeller
- Frames, bases and gland plates constructed of .125-in. aluminum
- Panels and heavy-duty rear cover constructed of 12 gauge mild steel
- Gasketed door, top and base
- Sides and standard rear cover constructed of .100-in. aluminum
- Tops and fan housing constructed of .080-in. aluminum
- Three-point latches operated by patented padlocking handle
- Grounding provisions on door and body
Customer Reviews
0.0
All Reviews
Hoffman WFHD3E726830 2D DXF CAD.zip
Hoffman WFHD3E726830 3D STEP CAD.zip
Hoffman WFHD3E726830 Declaration of Compliance.pdf

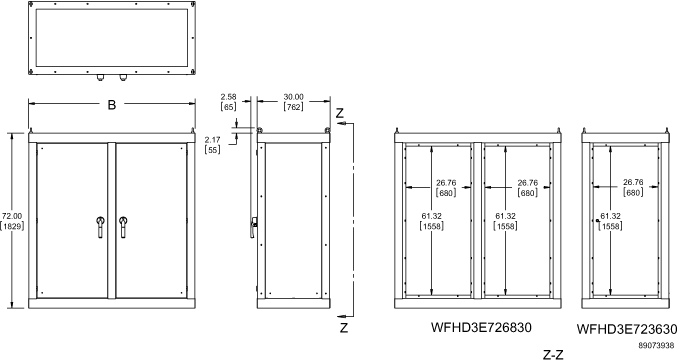

Hoffman WFHD3E726830 Dimension Drawing.gif
Hoffman WFHD3E726830 EU Certification.pdf
Hoffman WFHD3E726830 Instruction Manual.pdf
Hoffman WFHD3E726830 Large Enclosure Handling Manual.pdf
Hoffman WFHD3E726830 Spec Sheet.pdf
Hoffman WFHD3E726830 UL Certification.pdf
