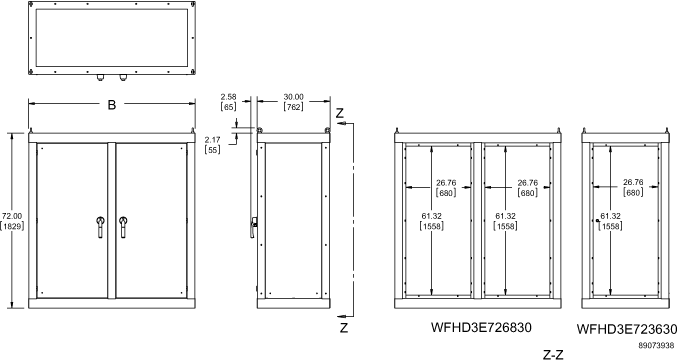

Hoffman WFHD3E723630 Dimension Drawing.gif
Hoffman WFHD3E723630 EU Certification.pdf
Hoffman WFHD3E723630 Instruction Manual.pdf
Hoffman WFHD3E723630 Large Enclosure Handling Manual.pdf
Hoffman WFHD3E723630 Spec Sheet.pdf
Hoffman WFHD3E723630 UL Certification.pdf
Hoffman WFHD3E723630 WEATHERFLO HD Commercial Enclosure

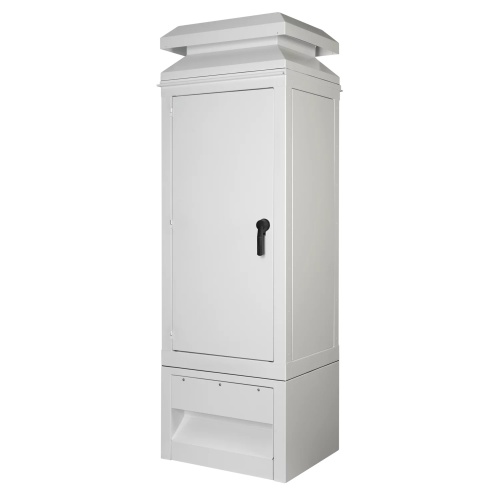

Hoffman WFHD3E723630 74" x 36" x 30" WEATHERFLO HD Type 3R Outdoor use White Steel Enclosure with intgrated cooling for VFD's. Hinged door with 3-point latch and padlocking handle. (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $4902.80
Sale Price:
$3414.45
Hoffman WFHD3E723630 WEATHERFLO HD Commercial Enclosure WEATHERFLO HD Steel Enclosure Type 3R for outdoor use with hinged door with 3-point latch and padlocking handle designed to protect and cool 100-500 HP variable frequency drives with easy-to-change filter (not included). Factory installed integrated cooling solution for your VFD application needs. Painted white polyester powder finish with low solar absorption, Selectable bases and tops, Gangable where enclosures can be joined to one another, Grounding provisions on door and body, stay in place gasketed door, top and base. Optional impeller packages provide 840 actual CFM per impeller, Easy-to-install back panel with flexible installation methods,
| Specifications | |
| Component | Commercial Enclosure |
| Enclosure Environment Rating | Outdoor-Indoor |
| Enclosure Interior Color | White |
| Enclosure Lock Type | Padlocking |
| Enclosure Depth | 30" |
| Enclosure Width | 36" |
| Enclosure Height | 74" |
| Manufacturer | Hoffman |
| Enclosure Door Type | Solid |
| Enclosure Mount Type | Wall Mount |
| Enclosure Composition | Steel |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 3R |
| Enclosure Type | HD Enclosure |
