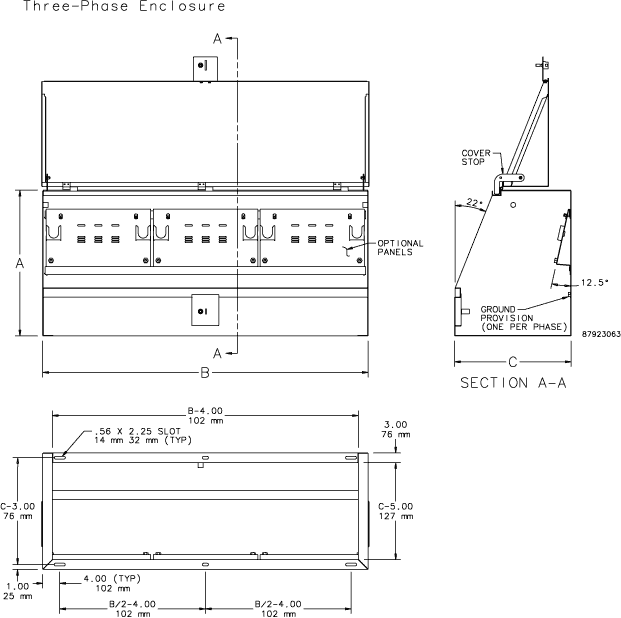

Hoffman UJ306724M2 2D DXF CAD.zip Hoffman UJ306724M2 3D STEP CAD.zip Hoffman UJ306724M2 Declaration of Compliance.pdf Hoffman UJ306724M2 Dimension Drawing.gif Hoffman UJ306724M2 EU Certification.pdf Hoffman UJ306724M2 Spec Sheet.pdf

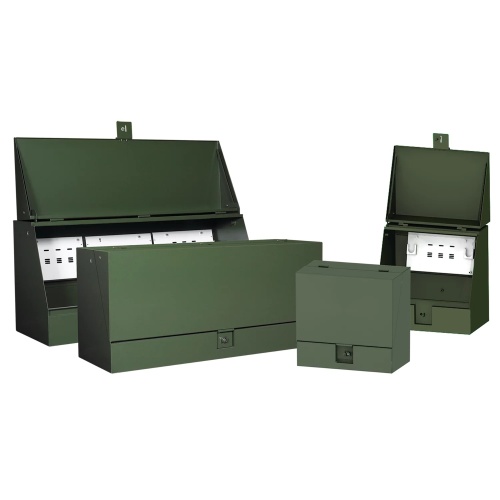

Hoffman UJ306724M2 Utility Junction (UJ) Cabinet

Hoffman UJ306724M2 Utility Junction (UJ) Cabinets Outdoor-Indoor 30" x 67" x 24" (HxWxD) Steel Enclosure. Free-Standing Painted Steel with Recessed Penta-Head Bolt latch Standard Hinge. (DOES NOT INCLUDE BACK PANEL)

Normally In Stock! Order now!

Condition: New

Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)

Price: $1890.00

Sale Price: $1509.30

Add to Job Add to Favorites Add to Quick Quote

Hoffman UJ306724M2 Utility Junction (UJ) Cabinet Utility Junction (UJ) Enclosures provide sectionalizing and tap-point functionality for underground distribution systems. Single- and three-phase models, these enclosures are rated 15 and 25 KV at 200 or 600 amperes and will accept two-, three- and four-way junctions from all manufacturers. Ground nut for each phase, Recessed stainless steel penta-head bolt with padlock security system, 5/8-11 threaded lifting provisions, and Wind stop.

Specifications
Component	Commercial Enclosure
Enclosure Composition	Galvanized Steel
Enclosure Interior Color	White
Enclosure Lock Type	Padlocking
Enclosure Depth	24"
Enclosure Interior Color	Green
Enclosure Height	30"
Enclosure Width	67"
Manufacturer	Hoffman
Enclosure Environment Rating	Indoor
Enclosure Door Type	Solid
Enclosure Mount Type	Wall Mount
Enclosure Number of Doors	1 Door
Enclosure Environment Rating	Underground
Enclosure Type	UJ Cabinet
