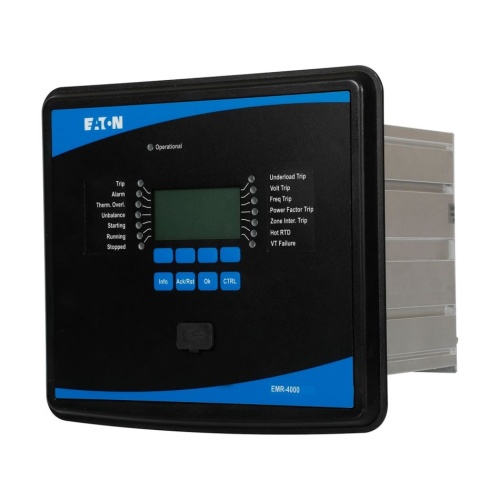

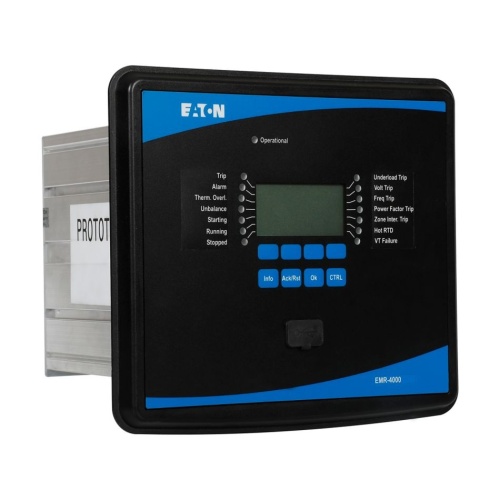

Eaton EMR-4000-2A0CB1 Motor Protection Relay - 8 Inputs 5 Outputs, 4 Analog Outputs

Eaton EMR-4000-2A0CB1 - The EMR Series motor protection relays are multifunctional microprocessor-based devices designed to protect motors of all sizes at various voltage levels, commonly used with medium to high voltage motors. They offer comprehensive motor protection, monitoring, and control functions, including thermal and locked rotor protection, phase and ground overcurrent elements, jam and stall protection, unbalance and underload protection, and more. They feature metering capabilities like amperes measurement, THD analysis, and temperature monitoring. The relay's monitoring features encompass oscillography, fault data logs, trend recording, and clock timestamping. The control functions include reduced voltage starting, load shedding, emergency override, and more, all configurable through programmable inputs and outputs. Communication capabilities involve local and remote communication ports with various protocols, facilitating remote monitoring and control - Eaton E-Series Protection Relay Devices now have a warranty extension of 10 years, superseding the previous warranty of 18 months - 8.7" x 9.72" x 8.06" (HxWxD)

Specifications
Relay Load Amperage	5 Amp
Relay Load Amperage	1 Amp
Manufacturer	Eaton
Component	Motor Protection
Analog Outputs	0
I/O Options	URTD Interface
I/O Options	IRIG-B
Sensing Inputs	Current Protection and Metering
Sensing Inputs	Voltage Protection and Metering
Sensing Inputs	Power Protection and Metering
Inputs	8
Outputs	5
Analog Inputs	4
