Phoenix Contact 1078683 Relay module PLC-RPT- 24DC/ 1ICT/ACT
Normally In Stock
Code: 269734
Phoenix 1078683 PLC-INTERFACE for high inrush currents, consisting of PLC-BPT.../1 IC/ACT basic terminal block with push-in connection and pluggable miniature relay, for mounting on DIN rail NS 35/7,5, max. inrush current up to 800 A, 1 N/O contact, input voltage 24 V DC
Condition: New
Usually ships Same Day or Next Day $30.95
Sale Price
$25.79
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1078683 A PLC-Interface designed for high inrush currents is available with a PLC-BPT.../1 IC/ACT basic terminal block featuring push-in connections and pluggable miniature relays, suitable for mounting on DIN rail NS 35/7.5 and capable of handling an inrush current of up to 800 amps, along with a single N/O contact, and input voltage requirements of 24V DC.
Specifications
Relay Mounting
Din Rail
Coil Voltage Rating
24 VDC
Relay Connection Type
Push-In Connection
Component
Relay Module
Manufacturer
Phoenix Contact
Relay Load Voltage AC Rating
24 VDC
Relay UL Rating
18 Mamp
Features
Direct connection of load return line thanks to actuator version
Efficient connection to system cabling using V8 adapter
Safe isolation between coil and contact side

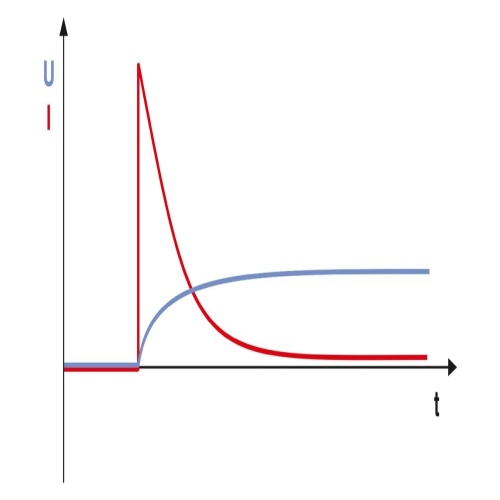

Max. inrush current of 800 A
Functional plug-in bridges
