Phoenix Contact 1107892 Power supply TRIO-PS-2G/1500DC/24DC/1.5
Normally In Stock
Code: 260176
TRIO-PS-2G/1500DC/24DC/1.5 Phoenix 1107892 DC/DC converters Input: 1500 VDC,Output: 24 VDC, 1.5 Amp Push-In Connections, Mount Type: Din Rail Mount
Condition: New
Usually ships Same Day or Next Day$149.50
Sale Price
$124.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

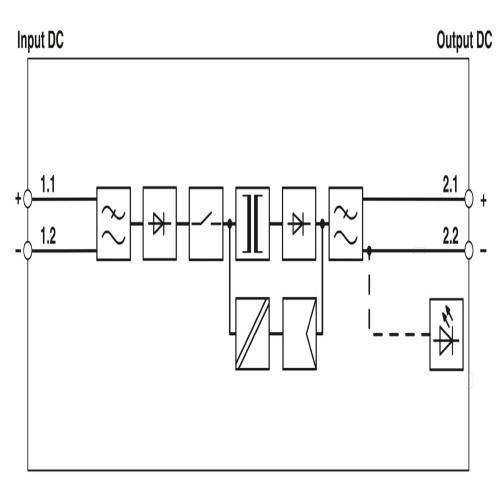

Phoenix Contact 1107892 The TRIO POWER DC/DC converter features a primary-switched design and comes equipped with push-in connections for easy DIN rail mounting. It operates on a DC input voltage of 1,500 volts and produces a DC output voltage of 24 volts while delivering a maximum current of 1.5 amps.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Voltage Output
24 VDC
Component
Power Supply
Manufacturer
Phoenix Contact
Line
TRIO
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
1500 VDC
Features
Suitable for use in all photovoltaic systems with high input voltage due to conformity with standards UL 62109 and UL 1741
High system availability with a robust design that ensures partial discharge resistance
Direct, immediate supply from the solar field to supply the string monitoring function within string combiner boxes
Quick and easy installation with Push-in connection
